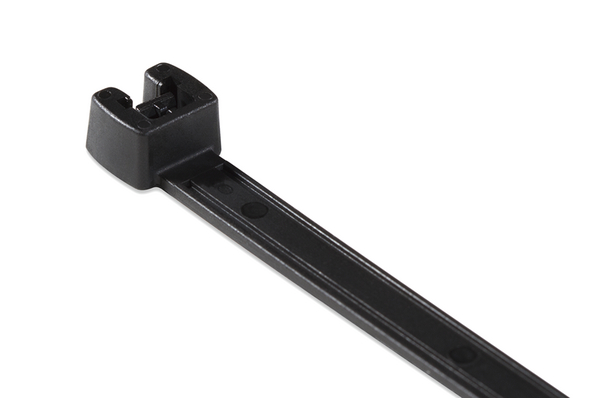

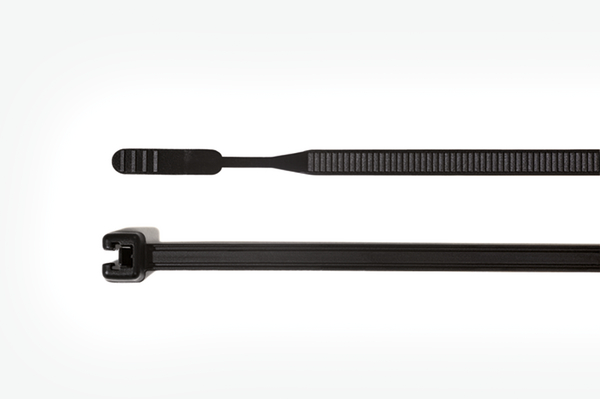

Cable tie inside serrated, 300.0x7.7mm, ∅6.0-70.0mm, black, 100pcs.
Číslo dílu 109-00053
| Q120I-PA66-BK
|
Podrobnosti na
Tento výrobek již není k dispozici.
K dispozici je alternativní výrobek.
- Open lock head for quick and easy insertion
- Integrated pre-locking function
- More than 25 % faster in application
- Inside serration for a strong hold around bundles
- Easy application either manually or with a processing tool
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Application | Q-Series cable ties for bundling and securing cables, pipes and hoses. The innovative and effective cable ties enable a simple and quick installation. |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | Q120I-PA66-BK |
| Pack Cont. | 100pcs. |
| Package Content packed in | bag |
| Product Family | Q-ties, Polyamide 6.6 (PA66), natural and black |
| Product Group | Cable Ties with open head |
| Releasable Closure (Yes/No) | No |
| Short Description | Cable Tie with open head 300x7.7 black |
| Tie Closure | plastic pawl |
| Type | Q120I |
| Variant | Inside Serrated |
Stáhnout
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B |
| UL Listed (US and Canada) | Yes |
| UL Listed (US and Canada) | Yes |
| UL OCD link | Odkaz |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL-File Number | E65344 |
|
|
|
| Country of Origin | ZA |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026412078 |
| Packaging 1 - Height (m) | 0.045m |
| Packaging 1 - Length (m) | 0.46m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00414m³ |
| Packaging 1 - Weight (kg) | 0.490001kg |
| Packaging 1 - Width (m) | 0.2m |
| Packaging 3 - Height (m) | 0.27m |
| Packaging 3 - Length (m) | 0.59m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0621m³ |
| Packaging 3 - Weight (kg) | 10.63002kg |
| Packaging 3 - Width (m) | 0.39m |
| Packaging 4 - Height (m) | 1.224m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 32000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.175m³ |
| Packaging 4 - Weight (kg) | 191.08kg |
| Packaging 4 - Width (m) | 0.8m |
