Cable tie outside serrated for narrow bundling, 102.5x2.45mm, ∅20.0mm, natural, 1000pcs.
Číslo dílu 118-00074
| V100R-PA66HS-NA
|
Podrobnosti na

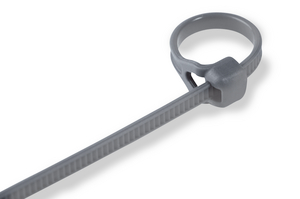

- Outside serrated cable tie with smooth surface to the bundle
- The 90° angled head perfectly fits onto the bundle
- Rounded head design minimises the risk of damage to insulation, especially of parallel routed bundles
- Low profile head takes up less space above the bundle
- Easy insertion and high tensile strength
- Easy application either manually or with a processing tool
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Application | Due to its low profile head, V-Series outside serrated cable ties are perfectly suited for applications with restricted space, such as camera, alarm and automation systems (Remote I/O Systems). Where bundles are fed through a grommet or ductwork, V-Series provides a practical solution due to its unique rounded design. |
| Colour | Natural (NA) |
| Identification Plate Position | none |
| Key product features | for narrow bundling |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| PART DESCRIPTION | V100R-PA66HS-NA |

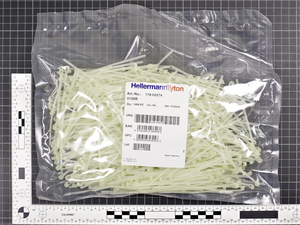

| Pack Cont. | 1000pcs. |
| Package Content packed in | bag |
| Product Family | V-Series |
| Product Group | Cable ties with 90° angled head |
| Releasable Closure (Yes/No) | No |
| Short Description | Cable Tie with 90° angled head 102.5x2.45 mm, heat stabilised |
| Tie Closure | plastic pawl |
| Type | V100R |
| Variant | Outside Serrated |
Stáhnout
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C, (+145 °C, 500 h) |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| Vibrations absorbing | No |
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026286068 |
| Packaging 1 - Height (m) | 0.04m |
| Packaging 1 - Length (m) | 0.16m |
| Packaging 1 - Qty | 1000 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00192m³ |
| Packaging 1 - Weight (kg) | 0.284862kg |
| Packaging 1 - Width (m) | 0.3m |
| Packaging 3 - Height (m) | 0.171m |
| Packaging 3 - Length (m) | 0.56m |
| Packaging 3 - Qty | 8000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0172m³ |
| Packaging 3 - Weight (kg) | 2.498896kg |
| Packaging 3 - Width (m) | 0.18m |
| Packaging 4 - Height (m) | 1.17m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 384000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.123m³ |
| Packaging 4 - Weight (kg) | 141.0kg |
| Packaging 4 - Width (m) | 0.8m |
