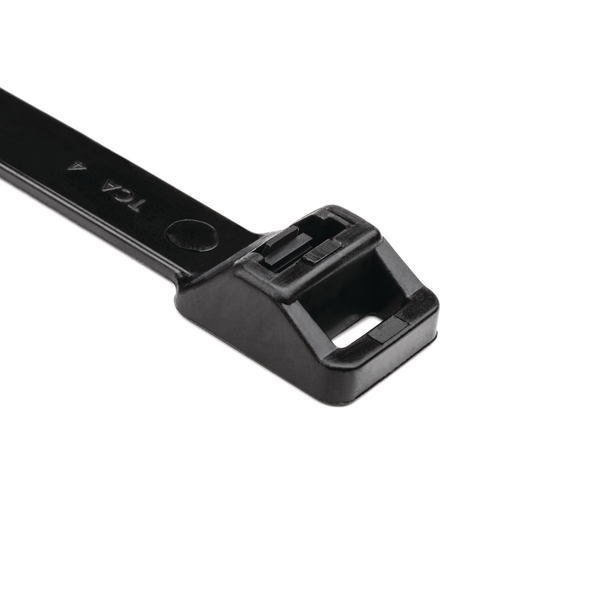

Releasable cable tie, 230.0x12.5mm, ∅12.0-50.0mm, 1115N, black, 25pcs.
Číslo dílu 115-41803
| RT250S-PA66W-BK
|
Podrobnosti na
- Releasable and reusable cable tie
- Suitable for larger and/or heavier bundles
- Eyelet allows excess tail to be tucked neatly away
- Available in black and natural colour
- Extended trigger for simple and quick release of ties
- Protected trigger to avoid accidental release
- RT250 cable ties are inside serrated
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Application | The RT250 is a releasable cable tie. Due to its minimum loop tensile strength of 1,115 N the cable tie is perfectly suited to fix larger and/or heavier bundles. RT250 can be opened and reused. UV-resistant cable ties manufactured from PA66W are recommended for outdoor applications. For shorter lengths REL250-Series can be offered. |
| Colour | Black (BK) |
| Fixation Method | Releasable Cable Tie |
| Identification Plate Position | none |
| Key product features | releasable |
| Material | Polyamide 6.6, UV-resistant (PA66W) |
| PART DESCRIPTION | RT250S-PA66W-BK |
| Pack Cont. | 25pcs. |
| Package Content packed in | bag |
| Product Family | RT250-Series up to 1115 N loop tensile strength |
| Product Group | Cable ties inside serrated with tuckaway |
| Releasable Closure (Yes/No) | Yes |
| Short Description | Releasable Cable Tie 230 x12.5 mm, UV-resistant, black |
| Tie Closure | plastic pawl |
| Type | RT250S |
| Variant | Inside Serrated |
|
|
| Bundle Diameter max (metric) | 50.0mm |
| Bundle ∅ | 12.0-50.0mm |
| Bundle ∅ min. | 12.0mm |
| Cable Tie Head Height (metric) | 9.5mm |
| Cable Tie Head Length (metric) | 22.4mm |
| Cable Tie Head Width (metric) | 20mm |
| Length (L) | 230.0mm |
| Min.Tensile Strength | 1115N |
| Strap Width max. (G) | 0.79" |
| Thickness (T) | 1.9mm |
| Weight/Unit | 0.007379kg |
| Width (W) | 12.5mm |
Stáhnout
| CE Certification | Yes |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Reusable (Yes/No) | Yes |
| Specifications |
|
| Specifications | UL |
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US and Canada) | Yes |
| UL Type | 11 |
| UL-File Number | E64139 |
| UV-Stabilised | Yes |
|
|
|
| Country of Origin | MX |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026312354 |
| Packaging 1 - Height (m) | 0.025m |
| Packaging 1 - Length (m) | 0.36m |
| Packaging 1 - Qty | 25 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00135m³ |
| Packaging 1 - Weight (kg) | 0.184476kg |
| Packaging 1 - Width (m) | 0.15m |
| Packaging 3 - Height (m) | 0.212725m |
| Packaging 3 - Length (m) | 0.51435m |
| Packaging 3 - Qty | 1000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0347m³ |
| Packaging 3 - Weight (kg) | 7.99904kg |
| Packaging 3 - Width (m) | 0.3175m |
| Packaging 4 - Height (m) | 1.209m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 20000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.161m³ |
| Packaging 4 - Weight (kg) | 180.98kg |
| Packaging 4 - Width (m) | 0.8m |
