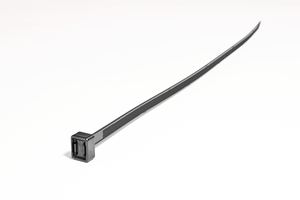

Cable tie outside serrated for direct fixation, 375x7.6mm, ∅100mm, black, 50pcs.
Číslo dílu 132-37530 | CT375-PA66HS-BK |  Podrobnosti na

BHT375 - used for mounting cables via a single hole.

    • Both sides serrated cable tie
    • BHT-Series with round head for larger bearing area
    • BHT375 for centred position
    • CT- and LHT-Series with small squared head for restricted space areas
    • Tensioning with application tool
    ukázat více
    Velikost balení
    Přidat do sledovaných položek

    Vyžádejte si nyní individuální nabídku

     Vyžádat nabídku
    Downloads
    Application Using a single hole these 'chassis ties' are widely used in the automotive, truck and heavy equipment markets. Ideal for applications which have access to both sides of the hole - example truck frame rails.
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method Others
    Identification Plate Position none
    Key product features for direct fixation
    Material Polyamide 6.6, heat stabilised (PA66HS)
    Material Head Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION CT375-PA66HS-BK
    Pack Cont. 50pcs.
    Package Content packed in bag
    Product Family CT-Series with square head, 700 N loop tensile strength
    Product Group Cable ties for single hole application
    Releasable Closure (Yes/No) No
    Short Description Chassis Tie 375x7.6 mm black
    Tie Closure plastic pawl
    Type CT375
    Variant Outside Serrated
    Bundle Diameter max (metric) 100mm
    Bundle ∅ 100mm
    Height (H) 1.5mm
    Height (H2) 7.5mm
    Length (L) 375mm
    Min.Tensile Strength 700N
    Thickness (T) 1.5mm
    Weight/Unit 0.004945kg
    Width (W) 7.6mm
    for Hole ∅ (FH) 8.5 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Nato number 5975-12-183-4844
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026115825
    Packaging 1 - Height (m) 0.13m
    Packaging 1 - Length (m) 0.4m
    Packaging 1 - Qty 50
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01664m³
    Packaging 1 - Weight (kg) 0.26275kg
    Packaging 1 - Width (m) 0.32m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 1500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 8.47469kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 30000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 190.66kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
