Fixing tie for screw fixation, inside serrated, ∅1.5-32.0mm, natural, 100pcs.
Číslo dílu 113-03019 | T30MR-PA66-NA |  Podrobnosti na

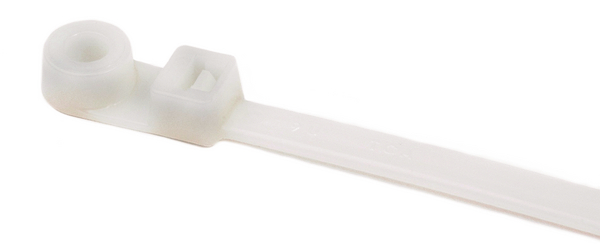

One-piece Screw Mount Cable Ties fasten with a screw or bolt to provide secure routing of cable bundles.

    • One-piece bundling and fixing tie
    • Quick and easy installation
    Přidat do sledovaných položek

    Vyžádejte si nyní individuální nabídku

     Vyžádat nabídku
    Downloads CAD-Download
    Application This range of one piece cable ties have a built in mounting hole and once fastened around the cables the bundle can be simply secured to the panel with a screw or bolt. The tie is fitted to the panel first and then the cables can be added.
    Colour Natural (NA)
    Fixation Method Screw Mount
    Identification Plate Position none
    Material Polyamide 6.6 (PA66)
    Mounting Screw Type #8 (M4) Screw
    PART DESCRIPTION T30MR-PA66-NA

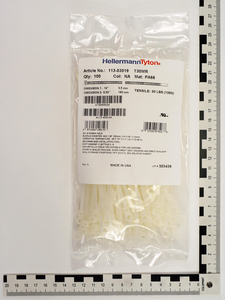

    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family MR Series
    Product Group 1-piece fixing ties with mounting head for screws
    Releasable Closure (Yes/No) No
    Short Description Fixing tie 160x3.5 mm, screwable (4.3 mm), natural
    Tie Closure plastic pawl
    Type T30MR
    Variant Inside Serrated
    Bundle Diameter max (metric) 32.0mm
    Bundle ∅ 1.5-32.0mm
    Bundle ∅ min. 1.5mm
    Height (H) 4.20mm
    Length (L) 160.0mm
    Mechanical Strength 89.0N
    Min.Tensile Strength 135N
    Thickness (T) 1.2mm
    Weight/Unit 0.0009kg
    Width (W) 3.5mm
    for Hole ∅ (FH) 4.3 mm
    CE Certification Yes
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    Plenum Rating AH-2
    ROHS compliant Yes
    Specifications
    Specifications UL 62275
    UL Listed (US and Canada) Yes
    UL Listed (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL Recognized (US) Yes
    UL-File Number E64139
    UV-Stabilised No
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026108193
    Packaging 1 - Height (m) 0.027m
    Packaging 1 - Length (m) 0.191m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00085m³
    Packaging 1 - Weight (kg) 0.090001kg
    Packaging 1 - Width (m) 0.164m
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Weight (kg) 5.12005kg
    Packaging 3 - Width (m) 0.3175m
    Packaging 4 - Height (m) 1.209m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 100000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.161m³
    Packaging 4 - Weight (kg) 123.4kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
