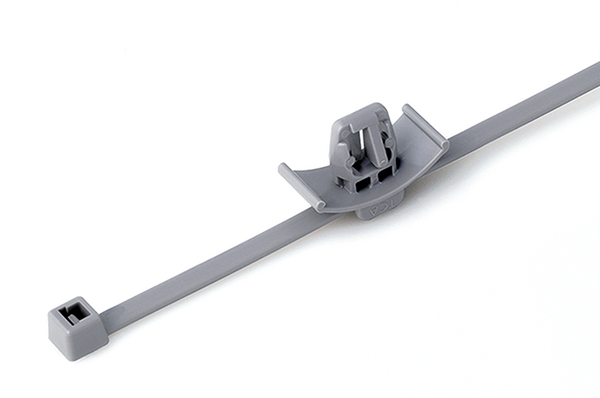

Fixing tie for hole (oval), inside serrated, ∅2.5-45.0mm, grey, 500pcs.
Číslo dílu 156-00446 | T50RFT62x122HR-PA46-GY |  Podrobnosti na

T50RFT62X122-HR - Being a two-piece assembly allows the tie head to be located in the most convenient position.

    • Pre-assembled 2-piece fixing tie with arrowhead foot part
    • Cable tie head can be moved after bundling
    • Easy to assemble without the need for a tool
    • Arrowhead simply locks into place
    • Versions for oval holes feature anti-twist protection
    ukázat více
    Přidat do sledovaných položek

    Vyžádejte si nyní individuální nabídku

     Vyžádat nabídku

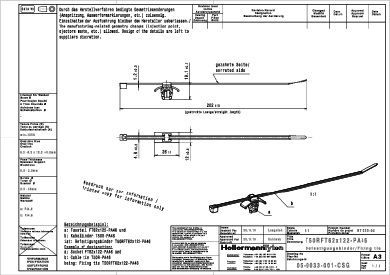

    Downloads CAD-Download
    Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.
    Colour Grey (GY)
    Fixation Method Arrowhead for oval holes
    Identification Plate Position none
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION T50RFT62x122HR-PA46-GY
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family 2-piece fixing ties with arrowhead, with wings for oval holes
    Product Group 2-piece fixing ties with arrowhead, for oval holes
    Short Description 2-Piece fixing tie 202x4.6 mm, with arrowhead, grey
    Type T50RFT62x122HR
    Variant Inside Serrated
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 2.5-45.0mm
    Bundle ∅ min. 2.5mm
    Height (H2) 19.1mm
    Length (L) 202mm
    Length (L2) 26.0mm
    Min.Tensile Strength 225N
    Thickness (T) 1.2mm
    Weight/Unit 0.00273kg
    Width (W) 4.6mm
    for Hole ∅ (FH) 6.3 x 12.2 mm
    for Panel Thickness min - max 0.6 - 3 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +150 °C
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026298948
    Packaging 1 - Height (m) 0.105m
    Packaging 1 - Length (m) 0.395m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01866m³
    Packaging 1 - Weight (kg) 1.394135kg
    Packaging 1 - Width (m) 0.45m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 9.18481kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 131.208kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
    Ukázat vše
