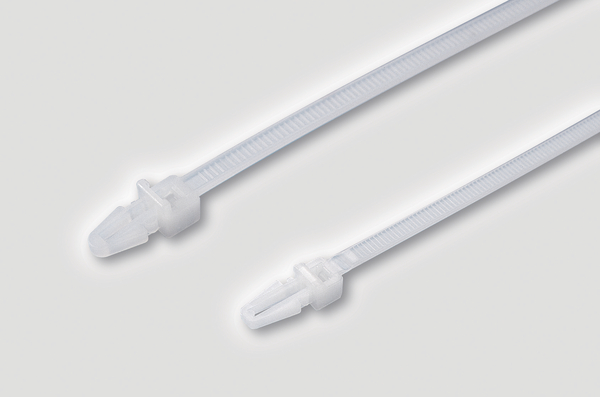

Fixing tie for hole (round), inside serrated, ∅3.0-44.0mm, natural, 500pcs.
Číslo dílu 111-85799
| T50RSF(E)-PA66-NA
|
Podrobnosti na
- Easy to assemble without the need for a tool
- Fixing tie with arrowhead without wings
- Arrowhead simply locks into place
- Cable tie head always situated in defined position
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Application | The arrowhead designs allows these ties to be used in areas with limited space. |
| Colour | Natural (NA) |
| Fixation Method | arrowhead |
| Identification Plate Position | none |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | T50RSF(E)-PA66-NA |
| Pack Cont. | 500pcs. |
| Package Content packed in | pcs. |
| Product Family | T50RSF(E) for max. bundle diameter 50,0 mm |
| Product Group | 1-Piece Fixing Ties with Arrowhead |
| Releasable Closure (Yes/No) | No |
| Short Description | Fixing Tie 210x4.6 natural |
| Tie Closure | plastic pawl |
| Type | T50RSF(E) |
| Variant | Inside Serrated |
|
|
| Bundle Diameter max (metric) | 44.0mm |
| Bundle ∅ | 3.0-44.0mm |
| Bundle ∅ min. | 3.0mm |
| Height (H) | 8.0mm |
| Length (L) | 210mm |
| Min.Tensile Strength | 225N |
| Panel Thickness max. | 2.9 – 3.0mm |
| Thickness (T) | 1.2mm |
| Weight/Unit | 0.001569kg |
| Width (W) | 4.6mm |
| for Hole ∅ (FH) | 6.2 - 6.4 mm |
| for Panel Thickness min - max | 2.9 - 3 mm |
| for Panel Thickness min - max | 0.1 - 0.1 " |
Stáhnout
|
|
|
| Country of Origin | GB |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 5022660326059 |
| Packaging 1 - Height (m) | 0.078m |
| Packaging 1 - Length (m) | 0.355m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00734m³ |
| Packaging 1 - Weight (kg) | 0.784501kg |
| Packaging 1 - Width (m) | 0.265m |
| Packaging 3 - Height (m) | 0.364m |
| Packaging 3 - Length (m) | 0.563m |
| Packaging 3 - Qty | 8000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0777m³ |
| Packaging 3 - Weight (kg) | 13.513016kg |
| Packaging 3 - Width (m) | 0.379m |
| Packaging 4 - Height (m) | 1.236m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 96000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.187m³ |
| Packaging 4 - Weight (kg) | 183.156kg |
| Packaging 4 - Width (m) | 0.8m |
