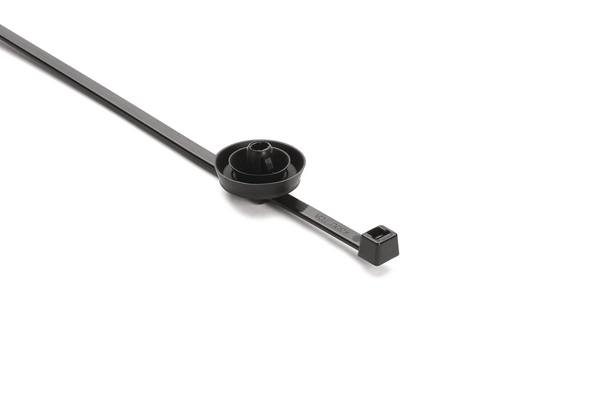

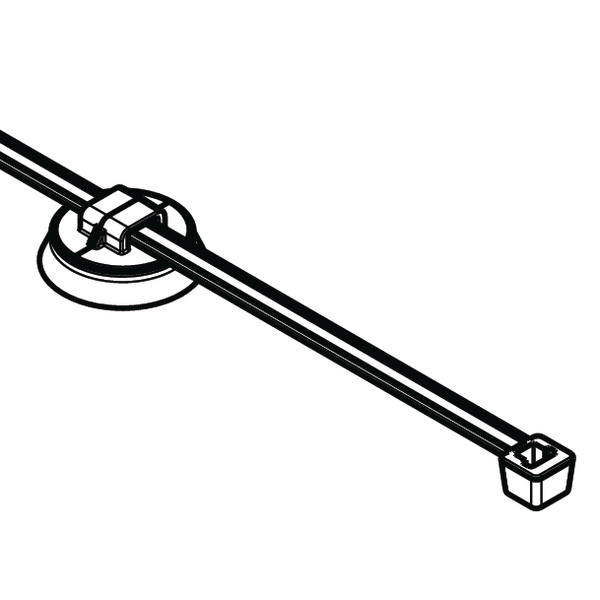

Fixing tie for hole (round), inside serrated, ∅3.0-50.0mm, black, 4000pcs.
Číslo dílu 156-01711 | T50RSRAH6.5SD-PA66HIRHSUV/TPE-BK |  Podrobnosti na

The additional seal protects against the ingress of moisture.

    • Pre-assembled 2-piece fixing tie with arrowhead foot part
    • Cable tie head can be moved after bundling
    • Easy to assemble without the need for a tool
    • Arrowhead simply locks into place
    • Disc adjusts tie for pressure from various directions
    • Seal protects against splash water
    • Versions "SRAH" are coming with a seal made from thermoplastic elastomer (TPE)
    ukázat více
    Přidat do sledovaných položek

    Vyžádejte si nyní individuální nabídku

     Vyžádat nabídku
    Downloads
    Application The parts are mainly used in the automotive industry. This fastening solution is used to secure cable harnesses e.g. in car doors. We offer a variety of panel thicknesses and hole sizes to suit all kinds of application. The seal protects the interior and surrounding cables among other things from splash water.
    Cable Tie Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Colour Black (BK)
    Fixation Method arrowhead
    Foot Part Thermoplastic Elastomer (TPE)
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Thermoplastic Elastomer (TPE)
    PART DESCRIPTION T50RSRAH6.5SD-PA66HIRHSUV/TPE-BK
    Pack Cont. 4000pcs.
    Package Content packed in bag
    Product Family for round holes, sealed
    Product Group 2-piece fixing ties with arrowhead, with disc
    Tie Closure plastic pawl
    Type T50RSRAH6.5SD
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 3.0-50.0mm
    Bundle ∅ min. 3.0mm
    Height (H) 13.25mm
    Length (L) 200mm
    Min.Tensile Strength 225N
    Panel Thickness max. 0.6 - 1.1mm
    Weight/Unit 0.0026kg
    Width (W) 4.6mm
    for Hole ∅ (FH) 6.35 mm (hexagonal), 6.5 mm
    for Panel Thickness min - max 0.6 - 1.1 mm
    for Panel Thickness min - max 0 - 0 "
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised Yes
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026577111

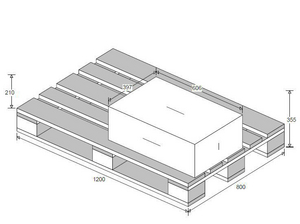

    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Qty 4000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0504m³
    Packaging 3 - Weight (kg) 11.26kg
    Packaging 3 - Width (m) 0.396875m

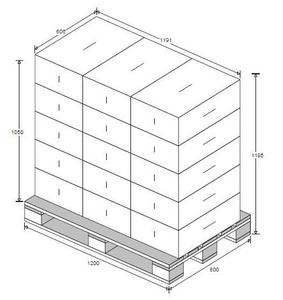

    Packaging 4 - Height (m) 1.194m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 60000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.146m³
    Packaging 4 - Weight (kg) 189.9kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
