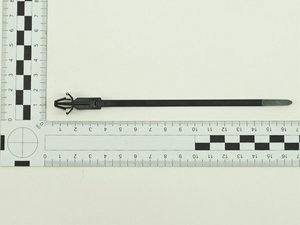

Fixing tie for hole (round), inside serrated, ∅1.6-25.0mm, black, 1000pcs.
Číslo dílu 126-00163 | T50SAH-PA66HS-BK |  Podrobnosti na

A wide range of arrowhead fixing ties which are suitable for different panel thicknesses and hole diameters.

    • Easy to assemble without the need for a tool
    • Cable tie head always situated in defined position
    • Arrowhead simply locks into place
    • Supporting legs provide a secure and firm fixing in areas where space is limited
    Přidat do sledovaných položek

    Vyžádejte si nyní individuální nabídku

     Vyžádat nabídku
    Downloads
    Application For bundling and fixing of cable harnesses, pipes and hoses in many different industries, including automotive, aerospace, white goods manufacturing and panel building.
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method arrowhead
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50SAH-PA66HS-BK

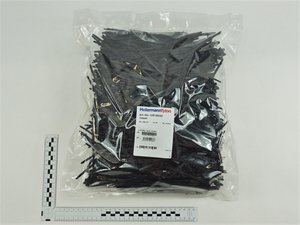

    Pack Cont. 1000pcs.
    Package Content packed in bag
    Product Family for round holes
    Product Group 1-Piece Fixing Ties with Arrowhead, with Wings
    Releasable Closure (Yes/No) No
    Short Description 1-piece fixing tie with arrowhead, with wings 160x4.6 mm, heat stabilised, black
    Tie Closure plastic pawl
    Type T50SAH
    Variant Inside Serrated
    Bundle Diameter max (metric) 25.0mm
    Bundle ∅ 1.6-25.0mm
    Bundle ∅ min. 1.6mm
    Length (L) 160mm
    Min.Tensile Strength 225N
    Panel Thickness max. 0.7 – 3.0mm
    Thickness (T) 1.2mm
    Weight/Unit 0.001571kg
    Width (W) 4.6mm
    for Hole ∅ (FH) 6.0 - 6.6 mm
    for Panel Thickness min - max 0.7 - 3 mm
    for Panel Thickness min - max 0 - 0.1 "
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026440866
    Packaging 1 - Height (m) 0.2m
    Packaging 1 - Length (m) 0.395m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.03555m³
    Packaging 1 - Weight (kg) 1.600135kg
    Packaging 1 - Width (m) 0.45m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 8000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 13.62108kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 96000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 184.44kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
