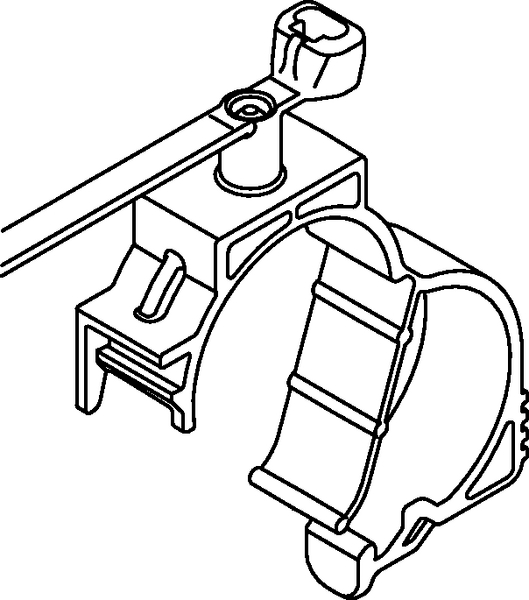

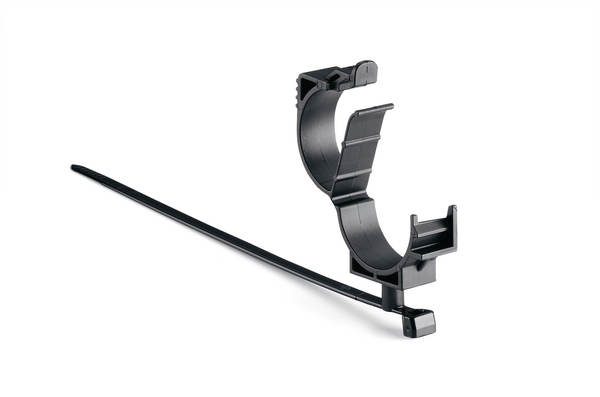

Fixing tie with pipe/tube holder, ∅20.0-25.0mm, black, 1000pcs.
Číslo dílu 156-01714
| T50SMVCLOC20-25-PA66HIRHSUV-BK
|
Podrobnosti na
- Fixing Clip offers full 360° rotation
- Inside serrated cable tie
- Routed cable can move in any direction in relation to the fixing point
- Automatic closure clip
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Application | The fasteners interconnect two different bundles of goods, of various size and type. The mobility of the fixing provides a secure grip and protects the cables or bundles, even in difficult conditions. |
| Cable Tie | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Cable ∅ max | 50.0mm |
| Cable ∅ min | 2.0mm |
| Colour | Black (BK) |
| Fixation Method | Omega Clip |
| Identification Plate Position | none |
| Key product features | lockable, rotatable |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | T50SMVCLOC20-25-PA66HIRHSUV-BK |
| Pack Cont. | 1000pcs. |
| Package Content packed in | carton |
| Product Group | 2-piece fixing ties with pipe clip |
| Type | T50SMVCLOC20-25 |
| Attach to Diameter | 0.79 - 0.98 " |
| Attach to Ø | 20.0 - 25.0 |
| Bundle Diameter Nom. (ND) | 20.0 mm - 25.0 mm |
| Bundle Diameter max (metric) | 25.0mm |
| Bundle ∅ | 20.0-25.0mm |
| Bundle ∅ min. | 20.0mm |
| Depth (D) | 12.0mm |
| Height (H) | 38.9mm |
| Length (L) | 210.0mm |
| Length (L2) | 26.0mm |
| Min.Tensile Strength | 225N |
| Weight/Unit | 0.006kg |
| Width (W) | 12.0mm |
Stáhnout
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +110 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | Yes |
|
|
|
| Country of Origin | MX |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026577227 |
| Packaging 3 - Height (m) | 0.37465m |
| Packaging 3 - Length (m) | 0.59055m |
| Packaging 3 - Qty | 1000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0646m³ |
| Packaging 3 - Weight (kg) | 6.82kg |
| Packaging 3 - Width (m) | 0.2921m |
| Packaging 4 - Height (m) | 1.269m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 12000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.218m³ |
| Packaging 4 - Weight (kg) | 102.84kg |
| Packaging 4 - Width (m) | 0.8m |
