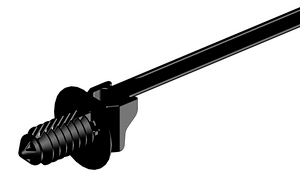

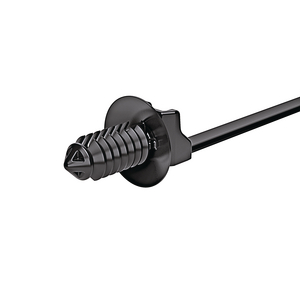

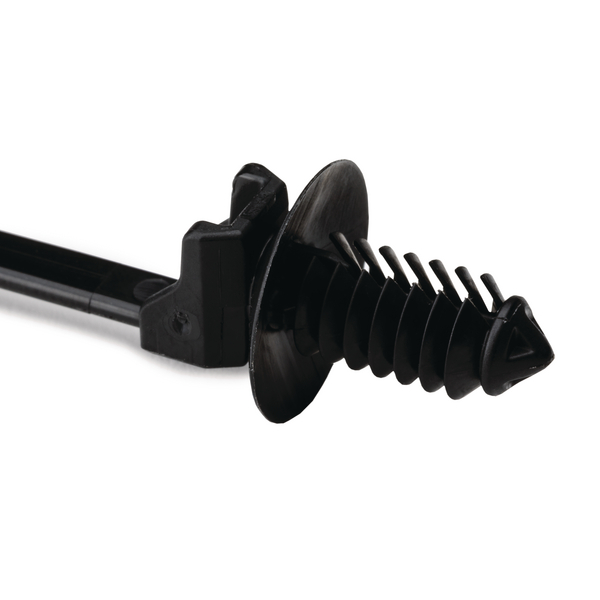

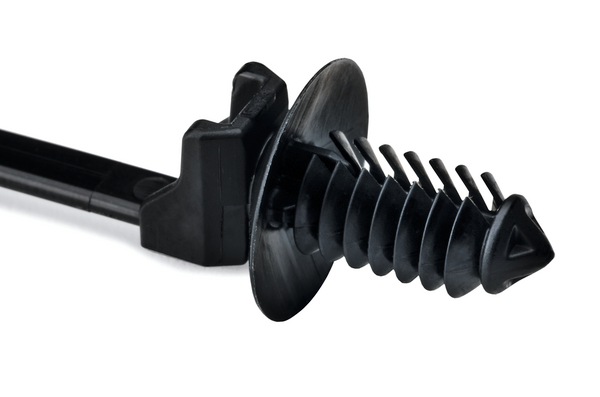

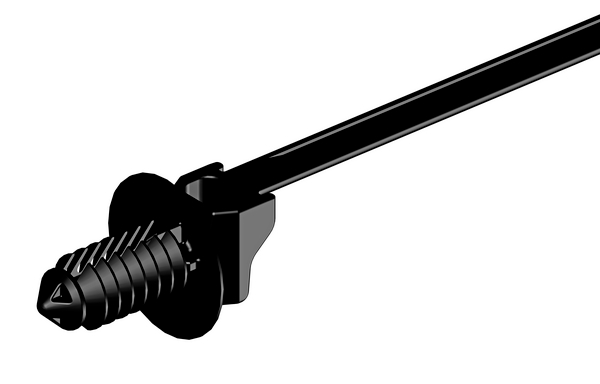

Fixing tie for hole (round), outside serrated, ∅1.0-35.0mm, black, 500pcs.
Číslo dílu 157-00242 | T50SOSFT6LG-E2-PA66HIRHS-BK |  Podrobnosti na

FT6LG a foot part for hole application which covers a high panel thickness of 0.6 - up to 8.3 mm.

    • Cable tie head always situated in defined position
    • Easy to assemble without the need for a tool
    • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
    • Fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    ukázat více
    Přidat do sledovaných položek

    Vyžádejte si nyní individuální nabídku

     Vyžádat nabídku
    Downloads
    Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Key product features products for automatic tools
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION T50SOSFT6LG-E2-PA66HIRHS-BK

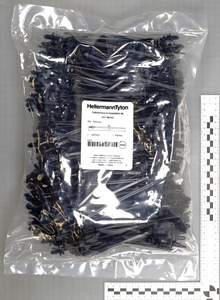

    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family Fir tree parts FT6
    Product Group 1-piece fixing ties with fir tree, with disc, for round holes
    Releasable Closure (Yes/No) No
    Short Description 1-Piece fixing tie 167x4.6 mm, with fir tree, high impact, heat stabilised, black
    Tie Closure plastic pawl
    Type T50SOSFT6LG-E2
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 1.0-35.0mm
    Bundle ∅ min. 1.0mm
    Disc ∅ 16.0mm
    Length (L) 167.0mm
    Min.Tensile Strength 180N
    Thickness (T) 1.3mm
    Weight/Unit 0.001541kg
    Width (W) 4.6mm
    for Hole ∅ (FH) 6.1 - 6.9 mm, 6.1 - 6.6 mm (hexagonal)
    for Panel Thickness min - max 0.6 - 8.3 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    Customs Number 39269097
    GTIN-13 / EAN 4031026516783
    Packaging 1 - Height (m) 0.096m
    Packaging 1 - Length (m) 0.305m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00688m³
    Packaging 1 - Weight (kg) 0.770501kg
    Packaging 1 - Width (m) 0.235m
    Packaging 3 - Height (m) 0.2m
    Packaging 3 - Length (m) 0.59m
    Packaging 3 - Qty 2500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.046m³
    Packaging 3 - Weight (kg) 4.672505kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.144m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 50000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.098m³
    Packaging 4 - Weight (kg) 114.45kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
