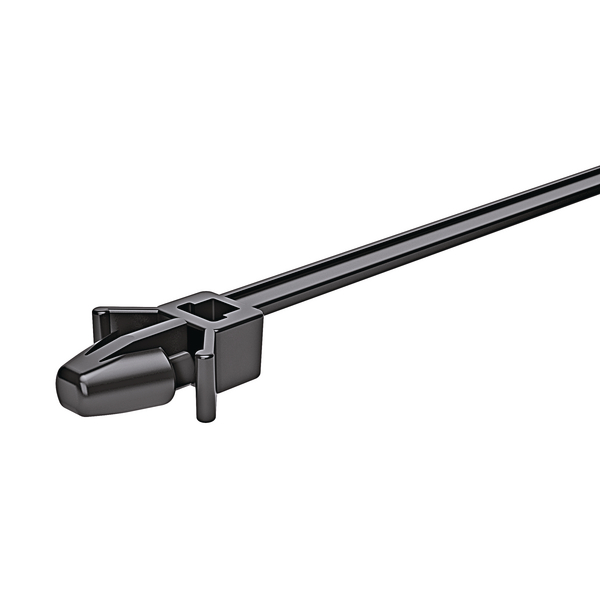

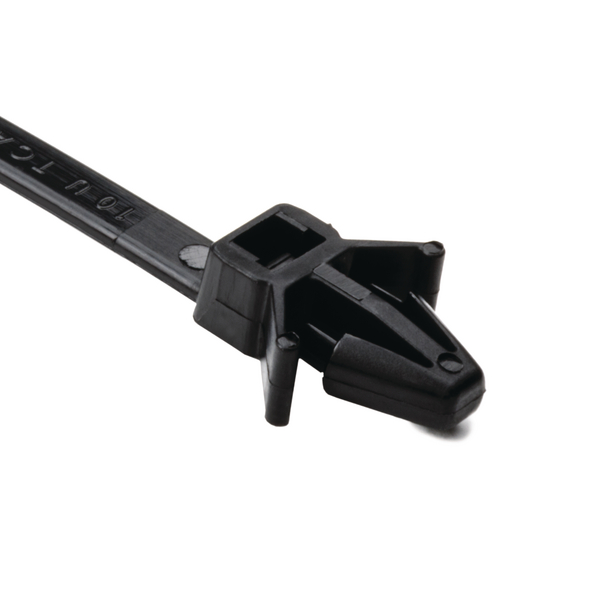

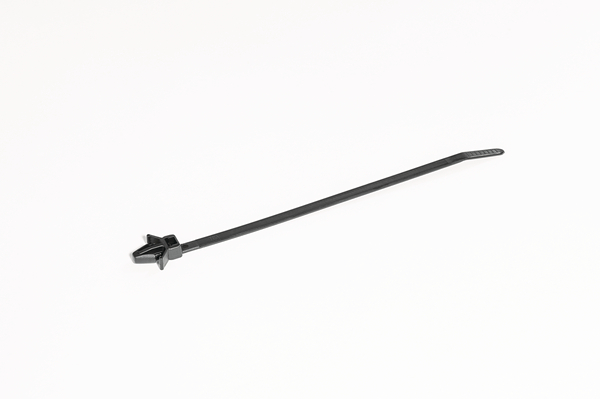

Fixing tie for hole (round), inside serrated, ∅1.5-35.0mm, black, 500pcs.
Číslo dílu 126-00032 | T50SSFM-PA66HS-BK |  Podrobnosti na

A wide range of arrowhead fixing ties which are suitable for different panel thicknesses and hole diameters.

    • Easy to assemble without the need for a tool
    • Cable tie head always situated in defined position
    • Arrowhead simply locks into place
    • Supporting legs provide a secure and firm fixing in areas where space is limited
    Přidat do sledovaných položek

    Vyžádejte si nyní individuální nabídku

     Vyžádat nabídku
    Downloads CAD-Download
    Application For bundling and fixing of cable harnesses, pipes and hoses in many different industries, including automotive, aerospace, white goods manufacturing and panel building.
    Anti rotation (Yes / No) NO
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method arrowhead
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T50SSFM-PA66HS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family for round holes
    Product Group 1-Piece Fixing Ties with Arrowhead, with Wings
    Releasable Closure (Yes/No) No
    Short Description Fixing tie 160 x4.6 mm, arrowhead, heat stabilised, black
    Tie Closure plastic pawl
    Type T50SSFM
    Variant Inside Serrated
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 1.5-35.0mm
    Bundle ∅ min. 1.5mm
    Fixing Hole Shape Circular
    Height (H) 5.6mm
    Length (L) 160mm
    Min.Tensile Strength 222N
    Panel Thickness max. 0.7 – 3.0mm
    Weight/Unit 0.001358kg
    Width (W) 4.6mm
    Width (W2) 14.7mm
    for Hole ∅ (FH) 6.0 - 6.6 mm
    for Panel Thickness min - max 0.7 - 3 mm
    for Panel Thickness min - max 0 - 0.1 "
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 39269097
    GTIN-13 / EAN 5022660326776
    Packaging 1 - Height (m) 0.038m
    Packaging 1 - Length (m) 0.445m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00634m³
    Packaging 1 - Weight (kg) 0.679001kg
    Packaging 1 - Width (m) 0.375m
    Packaging 3 - Height (m) 0.364m
    Packaging 3 - Length (m) 0.563m
    Packaging 3 - Qty 10000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0777m³
    Packaging 3 - Weight (kg) 14.54102kg
    Packaging 3 - Width (m) 0.379m
    Packaging 4 - Height (m) 1.236m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 120000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.187m³
    Packaging 4 - Weight (kg) 195.492kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
