19/11/2024

Fixing tie for hole (oval), inside serrated, ∅1.5-45.0mm, black, 1000pcs.
Číslo dílu 150-48396 | T80RFT6X12-PA66-BK |  Podrobnosti na

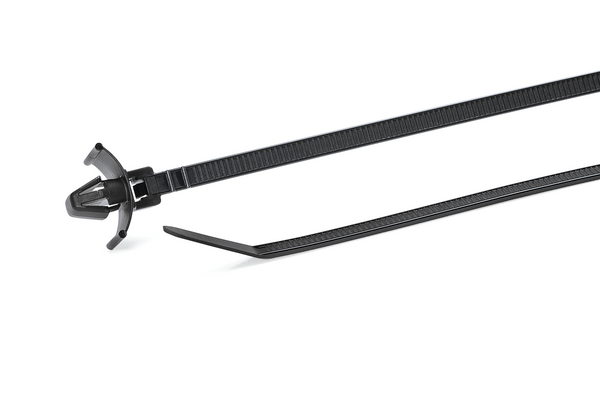

1-Piece Fixing Tie for round holes with wings.

    • Easy to assemble without the need for a tool
    • Cable tie head always situated in defined position
    • Arrowhead simply locks into place
    • Supporting legs provide a secure and firm fixing in areas where space is limited
    • Versions for oval holes feature anti-twist protection
    ukázat více
    Přidat do sledovaných položek

    Vyžádejte si nyní individuální nabídku

     Vyžádat nabídku
    Downloads CAD-Download
    Application With a diverse range of fixing possibilities are ideal for use in many different industries, including automotive, aerospace, white goods manufacture and panel building.
    Colour Black (BK)
    Fixation Method arrowhead
    Identification Plate Position none
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION T80RFT6X12-PA66-BK

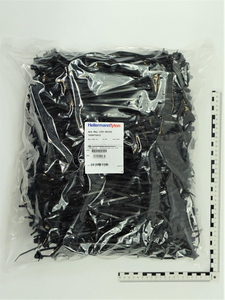

    Pack Cont. 1000pcs.
    Package Content packed in bag
    Product Family for oval holes
    Product Group 1-Piece Fixing Ties with Arrowhead, with Wings, for Oval Holes
    Releasable Closure (Yes/No) No
    Short Description Fixing tie 228x4.6 mm, black
    Tie Closure plastic pawl
    Type T80RFT6X12
    Variant Inside Serrated
    Bundle Diameter max (metric) 45.0mm
    Bundle ∅ 1.5-45.0mm
    Bundle ∅ min. 1.5mm
    Fixing Hole Shape Oval
    Length (L) 228mm
    Min.Tensile Strength 222N
    Panel Thickness max. 0.6 - 3.0mm
    Weight/Unit 0.0018kg
    Width (W) 4.6mm
    for Hole ∅ (FH) 6.3 x 12.3 mm
    for Panel Thickness min - max 0.6 - 3 mm
    for Panel Thickness min - max 0 - 0 "
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026201634
    Packaging 1 - Height (m) 0.11m
    Packaging 1 - Length (m) 0.47m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.02818m³
    Packaging 1 - Weight (kg) 1.843597kg
    Packaging 1 - Width (m) 0.545m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 4000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 8.194388kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 48000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 119.352kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
