Fixing tie for hole (round), inside serrated, ∅50.0mm, black, 1000pcs.
Číslo dílu 150-39385 | T80RSF6.5FW-PA66HS-BK |  Podrobnosti na

Designed to secure cables with parallel bundling the T80RSF6.5F offers a simple and secure fixing.

    • Arrowhead located on strap for minimal space
    • Room to guide two cables parallel without second clip
    Přidat do sledovaných položek

    Vyžádejte si nyní individuální nabídku

     Vyžádat nabídku
    Downloads CAD-Download
    Application This range of fixing ties is ideal for use in many different industries, including automotive, aerospace and panel building.. The T80RSF6.5FW feature a detent that fits securely into the profile of the tubing which assists from preventing lateral movement and slipping of the tubing.
    Colour Black (BK)
    Description Arrowhead Push Ties secure fast and easy, while providing a disc feature to minimize the ingress of dust, dirt, and water. The anchor slides along the tie and adjusts for variations in panel thicknesses which insures a secure fixing at all times.
    Fixation Method arrowhead
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T80RSF6.5FW-PA66HS-BK
    Pack Cont. 1000pcs.
    Package Content packed in bag
    Product Family T80RSF6.5FW with rib for convoluted tubes
    Product Group 1-Piece Fixing Ties with Arrowhead, with Wings in the strap
    Releasable Closure (Yes/No) No
    Short Description 1-Piece Fixing Tie with Arrowhead and Wings in the strap PA66HS 209x4.7 black
    Tie Closure plastic pawl
    Type T80RSF6.5FW
    Variant Inside Serrated
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 50.0mm
    Height (H) 1.3mm

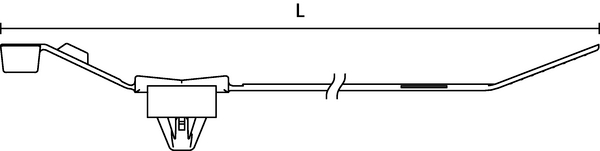

    Length (L) 209mm
    Min.Tensile Strength 355N
    Thickness (T) 1.3mm
    Weight/Unit 0.0018kg
    Width (W) 4.7mm
    for Hole ∅ (FH) 6.3 - 6.5 mm
    for Panel Thickness min - max 0.6 - 3 mm
    for Panel Thickness min - max - 0
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026215044
    Packaging 1 - Height (m) 0.2m
    Packaging 1 - Length (m) 0.46m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.04784m³
    Packaging 1 - Weight (kg) 2.36kg
    Packaging 1 - Width (m) 0.52m
    Packaging 3 - Height (m) 0.538m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 4000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.1213m³
    Packaging 3 - Weight (kg) 10.54kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.22m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 32000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.171m³
    Packaging 4 - Weight (kg) 105.32kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
