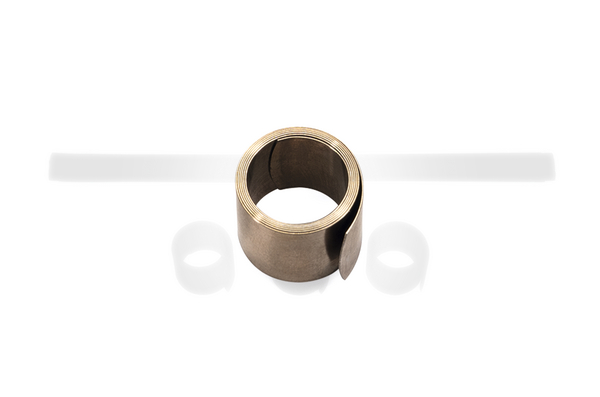

Rollspring, ∅6 - 10mm, grey, 100pcs.
Číslo dílu 435-01800
| CFS 6-10-SpS-GY
|
Podrobnosti na
- Easy and safe to install. Diameter range is printed on the stell edge.
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
| Application | HellermannTyton Roll springs are made of Type 301 stainless spring steel and will be used for mounting earth or shild leads on various types of shilded or amoured cables. The connection could be done with a cast Resin joint as Relicon, with a Gel joint or Heatshrink tube. Due to the application the spring must have a constant force to the whole length that covers the product diameter. The straight end of the spring makes installation simply and will avoid injuries. The suitable cable diameters are printed on the spring. |
| Cable ∅ max | 10mm |
| Cable ∅ min | 6mm |
| Colour | Grey (GY) |
| Material | Spring Steel (SpS) |
| PART DESCRIPTION | CFS 6-10-SpS-GY |
| Pack Cont. | 100pcs. |
| Package Content packed in | box |
| Type | CFS 6-10 |
Stáhnout
| Country of Origin | TW |
| Customs Number | 73209090 |
| GTIN-13 / EAN | 4031026620732 |
| Packaging 1 - Height (m) | 0.016m |
| Packaging 1 - Length (m) | 0.225m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0m³ |
| Packaging 1 - Weight (kg) | 0.170001kg |
| Packaging 1 - Width (m) | 0.00005m |
| Packaging 3 - Height (m) | 0.15m |
| Packaging 3 - Length (m) | 0.37m |
| Packaging 3 - Qty | 1000 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0083m³ |
| Packaging 3 - Weight (kg) | 2.2kg |
| Packaging 3 - Width (m) | 0.15m |
| Packaging 4 - Height (m) | 1.195m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 112000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.147m³ |
| Packaging 4 - Weight (kg) | 267.4kg |
| Packaging 4 - Width (m) | 0.8m |
