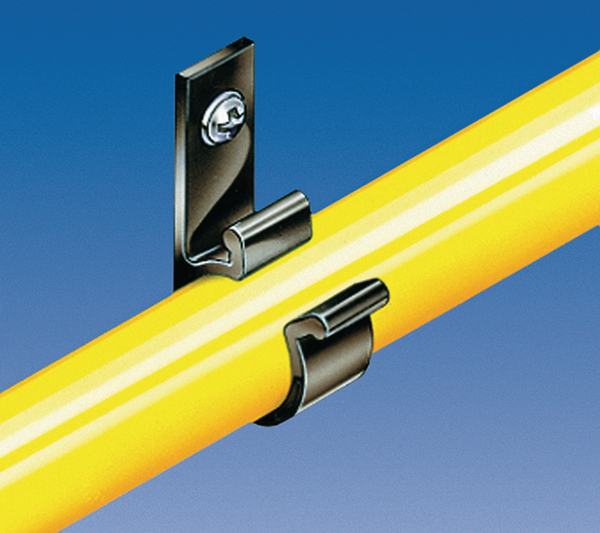

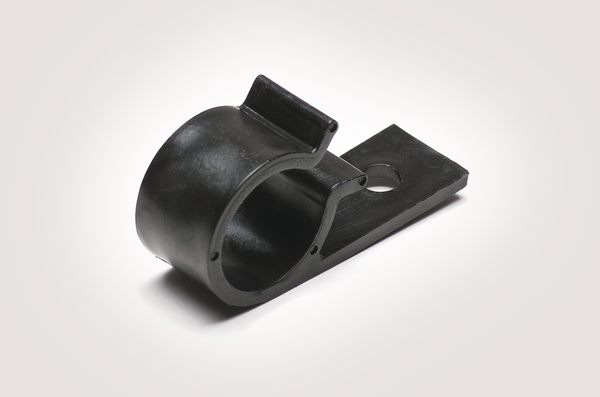

Cable clip with pipe/tube holder/for screw fixation, ∅6.0 mm, Dmin=10.0mm, Dmax=10.0mm
Číslo dílu 211-70100
| 6D10-POM-BK
|
Podrobnosti na
- Screwed D-Clips available in 3 sizes
- Guaranteed time and cost saving by simply pressing cable into holder
- Flexible grip for later removal or replacement of cables
- 3 different bore diameters available for fixing holders
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Application | Developed for fixing pipes, cables and hoses, the D-Clips elastic locking system ensures optimal fixing and at the same time, easy removal of the fixed elements by simply pressing the lower latch down and pulling the fixed element. |
| Colour | Black (BK) |
| Fixation Method | screw-hole |
| Material | Polyacetal (POM) |
| PART DESCRIPTION | 6D10-POM-BK |
| Pack Cont. | 500pcs. |
| Package Content packed in | bag |
| Product Family | D-Clip Series |
| Product Group | Screw Mount |
| Short Description | Screw Mount black |
| Type | 6D10 |
| Variant | Closed |
Stáhnout
|
|
|
| Country of Origin | GB |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 5022660301315 |
| Packaging 1 - Height (m) | 0.05m |
| Packaging 1 - Length (m) | 0.356m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00543m³ |
| Packaging 1 - Weight (kg) | 1.250001kg |
| Packaging 1 - Width (m) | 0.305m |
| Packaging 3 - Height (m) | 0.192m |
| Packaging 3 - Length (m) | 0.586m |
| Packaging 3 - Qty | 6000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0439m³ |
| Packaging 3 - Weight (kg) | 15.802012kg |
| Packaging 3 - Width (m) | 0.39m |
| Packaging 4 - Height (m) | 1.164m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 120000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.117m³ |
| Packaging 4 - Weight (kg) | 337.04kg |
| Packaging 4 - Width (m) | 0.8m |
4D10
211-70000
8D10
211-70200
8D15
211-70203
8D20
211-70204
