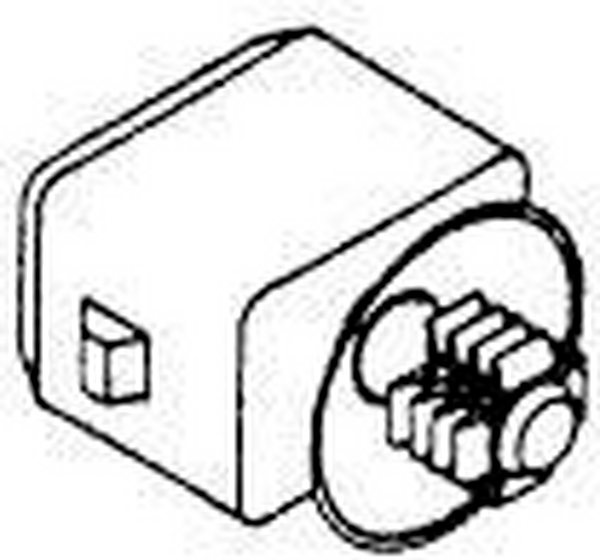

Protection cap for connectors, black, 600pcs.
Číslo dílu 151-00339 | 9632910680-PA6HIR-BK Podrobnosti na

  • Meets car makers' specifications
  • Hides functions not used on vehicle
  • Secures electronic and electric connections for optional functions
  • Used in conjunction with FCI Sicma Mini Sealed connectors
  • Suitable for TYCO HP wire-to-wire connectors 2, 3 or 6 ways
  • Protect seals of electrical connections
  • Ensures fixation on oval or circular hole on car body
ukázat více

Vyžádejte si nyní individuální nabídku

Application Compatible in the engine area for 2 and 3 ways, these parts can be fitted directly on the connector by the harnessmakers or on car line production.
Colour Black (BK)
Fixation Method Fir Tree
Material Polyamide 6, high impact modified (PA6HIR)
PART DESCRIPTION 9632910680-PA6HIR-BK
Pack Cont. 600pcs.
Package Content packed in carton
Product Family with fir tree
Product Group Protection caps for oval holes
Type 9632910680
for Hole ∅ (FH) 6.5 mm
for Panel Thickness min - max 0.7 - 4 mm
ROHS compliant Yes
Specifications
Country of Origin FR
GTIN-13 / EAN 4031026710716
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
