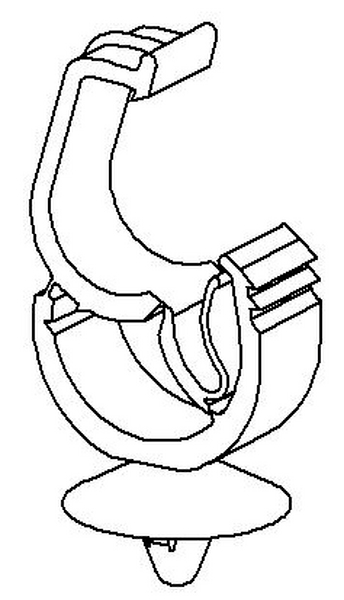

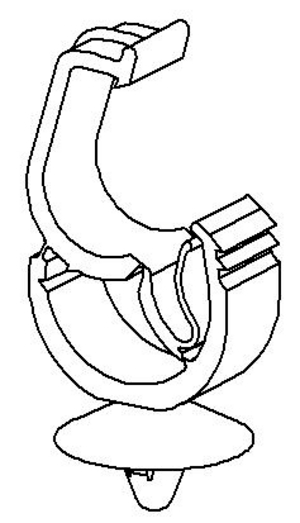

Cable clip for hole (round), ∅6.5 mm, Dmin=27.0mm, Dmax=41.5mm
Číslo dílu 151-00374 | AHC4AH-PA66HIRHS-BK |  Podrobnosti na

Automatic Harness Clip Family for oval holes.

    • Push and click closure for fixing of wires
    • Clip is clicked into a specific hole
    • AHC( )SS und AHC( )SB can be pushed onto a 5.0 mm stud
    Přidat do sledovaných položek

    Vyžádejte si nyní individuální nabídku

     Vyžádat nabídku
    Downloads CAD-Download
    Application Offering a simple and secure method of attaching cables to panels. Originally designed for the automotive industry, these products are used in a wide range of applications with sheet metal panels across various industries.
    Colour Black (BK)
    Key product features for faster processing, for multiple routing, lockable
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION AHC4AH-PA66HIRHS-BK
    Pack Cont. 400pcs.
    Package Content packed in box
    Product Family AHC-Series
    Product Group Fixing Elements for Tubes and Harnesses with Automatic Locking Feature
    Short Description Harness clip 61.3x13.5 mm, automatic locking, high impact modified, heat stabilised, black
    Type AHC4AH
    Bundle Diameter max (metric) 41.5mm
    Bundle ∅ 27.0-41.5mm
    Bundle ∅ min. 27.0mm
    Disc ∅ 24.0mm
    Length (L) 60.5mm
    Length (L2) 7.5mm
    Weight/Unit 0.0101kg
    Width (W) 15.9mm
    for Hole ∅ (FH) 6.5 mm
    for Panel Thickness min - max 0.8 - 2.7 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +80 °C
    ROHS compliant Yes
    Specifications
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026313139
    Packaging 3 - Height (m) 0.3m
    Packaging 3 - Length (m) 0.4m
    Packaging 3 - Qty 400
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.036m³
    Packaging 3 - Weight (kg) 4.535kg
    Packaging 3 - Width (m) 0.3m
    Packaging 4 - Height (m) 1.044m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 9600
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.002m³
    Packaging 4 - Weight (kg) 129.84kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 39121702
