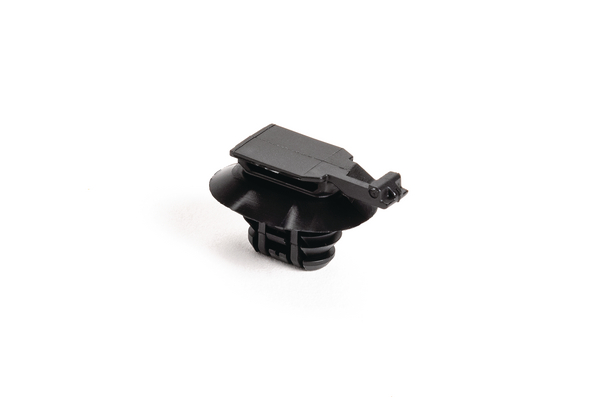

Connector clip, EWCAP-005-11, black, 5000pcs.
Číslo dílu 151-02206
| CC16R-PA66HIRHSUV-BK
|
Podrobnosti na
![](https://www.hellermanntyton.com/shared/speclogos/99595_All_Languages.jpg)
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
Colour | Black (BK) |
Fixation Method | Fir Tree for oval holes |
Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
PART DESCRIPTION | CC16R-PA66HIRHSUV-BK |
Pack Cont. | 5000pcs. |
Package Content packed in | carton |
Product Family | With FirTree |
Product Group | Connector Clips for Oval Holes |
Type | CC16R |
CE Certification | No |
CSA Certified | No |
ELV compliant (Article 4 - 2) | YES |
Hazardous Goods | No |
Operating Temperature | -40 °C to +105 °C |
ROHS compliant | Yes |
Specifications |
![]() |
UL Listed (US and Canada) | No |
UL Listed (US and Canada) | No |
UL Recognized (US and Canada) | No |
UL Recognized (US and Canada) | No |
UV-Stabilised | Yes |
|
|
Country of Origin | US |
Customs Number | 39269097 |
GTIN-13 / EAN | 4031026604930 |
Packaging 1 - Height (m) | 0.14m |
Packaging 1 - Length (m) | 0.595m |
Packaging 1 - Qty | 5000 |
Packaging 1 - Type | bag |
Packaging 1 - Volume (m³) | 0.03207m³ |
Packaging 1 - Weight (kg) | 6.845001kg |
Packaging 1 - Width (m) | 0.385m |
Packaging 3 - Height (m) | 0.2159m |
Packaging 3 - Length (m) | 0.606425m |
Packaging 3 - Qty | 5000 |
Packaging 3 - Type | box |
Packaging 3 - Volume (m³) | 0.052m³ |
Packaging 3 - Weight (kg) | 7.705001kg |
Packaging 3 - Width (m) | 0.396875m |
Packaging 4 - Height (m) | 1.224m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 75000 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 1.175m³ |
Packaging 4 - Weight (kg) | 136.575kg |
Packaging 4 - Width (m) | 0.8m |
