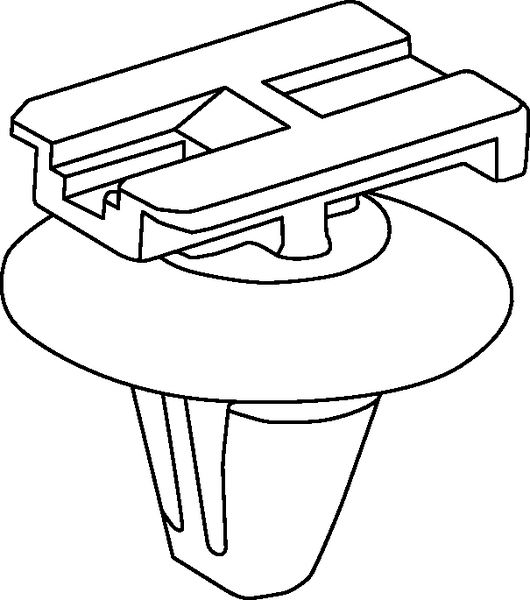

Connector clip for connector/for hole (round), black, 500pcs.
Číslo dílu 151-01466 | CC1SFT7PT2.3-3.5-PA66HIRHS-BK Podrobnosti na

  • Connector easily installed by simply pushing into place
  • Connection can be released (non-destructive)
  • Arrowhead locks into place for secure fixing at all times

Vyžádejte si nyní individuální nabídku

Colour Black (BK)
Key product features sealed
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION CC1SFT7PT2.3-3.5-PA66HIRHS-BK
Pack Cont. 500pcs.
Package Content packed in bag
Product Family With Arrowhead
Product Group Connector Clips for round holes
Type CC1SFT7PT2.3-3.5
Length (L) 17.0mm
Panel Thickness max. 2.3 - 3.5mm
for Hole ∅ (FH) 6.8 - 7.2 mm
for Panel Thickness min - max 2.3 - 3.5 mm
Operating Temperature -40 °C to +105 °C
Country of Origin CN
GTIN-13 / EAN 4031026541877
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121702
