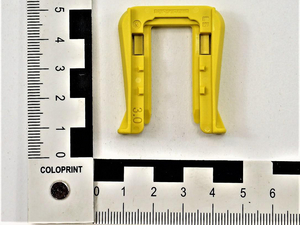

Fixing slider for connectors, T=3.0mm, yellow, 1500pcs.
Číslo dílu 151-02395
| FSD3.0-PBTGF30FR-YE
|
Podrobnosti na
- Color coding for panel thickness: red (2.5 mm), yellow (3.0 mm), grey (1.5 mm and 3.5mm), natural (1.0 mm and 1.5 mm)
- Panel thickness is marked on the slider
- Permanent fixation of the connectors in the mounting hole by using the slider
- These parts are also available in V0 material (flame retardent) e.g. for public transport
- Fixing slider fit for the Aptiv connector XS and SP series
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Application | The slider is used to keep the plugs firmly and vibration-proof in place, even when movement acts on it. |
| Colour | Yellow (YE) |
| Material | Polybutylene Terephthalate glass-fibre reinforced, flame retardant (PBTGF30FR) |
| PART DESCRIPTION | FSD3.0-PBTGF30FR-YE |

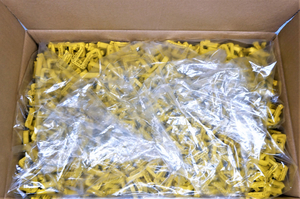

| Pack Cont. | 1500pcs. |
| Package Content packed in | bag |
| Product Family | Fixing Slider D, 1.0 mm CTCS-series |
| Product Group | Connector Accessory Fixing Slider, Group D |
| Type | FSD3.0 |
Stáhnout
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026608129 |
| Packaging 1 - Height (m) | 0.8m |
| Packaging 1 - Length (m) | 0.6m |
| Packaging 1 - Qty | 1500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.192m³ |
| Packaging 1 - Weight (kg) | 10.745411kg |
| Packaging 1 - Width (m) | 0.4m |
| Packaging 3 - Height (m) | 0.184m |
| Packaging 3 - Length (m) | 0.58m |
| Packaging 3 - Qty | 1500 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0406m³ |
| Packaging 3 - Weight (kg) | 11.345411kg |
| Packaging 3 - Width (m) | 0.38m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 36000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 293.28kg |
| Packaging 4 - Width (m) | 0.8m |
