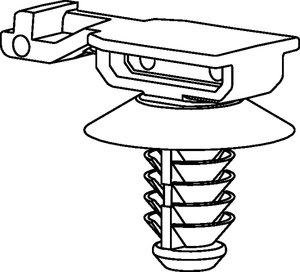

Cable clip with pipe/tube holder/for hole (round), T=4.5mm, ∅7.0 mm, Dmax=12mm
Číslo dílu 151-00852 | HC512FT7J-PA66HSUV-BK Podrobnosti na

  • Fixing Elements for Tubes and Harnesses with Fir Tree Mount

Vyžádejte si nyní individuální nabídku

Application This Fixing Element is pressed into a hole by hand and locked into place with a hearable click. Cable bundles can be applicated afterwards.
Colour Black (BK)
Description A new solution for fixing harnesses
Key product features lockable, rotatable, removable
Material Polyamide 6.6, heat and UV-stabilised (PA66HSUV)
PART DESCRIPTION HC512FT7J-PA66HSUV-BK
Pack Cont. 100pcs.
Package Content packed in bag
Product Family With Fir Tree
Product Group Fixing Elements for Tubes and Harnesses
Short Description Harness Clip, close, round hole 7.0 mm, fir tree, heat and UV-stabilised, black
Type HC512FT7J
Attach to Ø 12.0
Bundle Diameter max (metric) 12mm
Bundle ∅ 12mm
Panel Thickness max. 4.5mm
Weight/Unit 0.003357kg
Width (W) 12mm
for Hole ∅ (FH) 7.0 mm
for Panel Thickness min - max 4.5 - 4.5 mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +110 °C
ROHS compliant Yes
Specifications
Country of Origin JP
Customs Number 39269097
GTIN-13 / EAN 4944387961515
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.27m
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00211
Packaging 1 - Weight (kg) 0.335701kg
Packaging 1 - Width (m) 0.195m
Packaging 3 - Height (m) 0.3m
Packaging 3 - Length (m) 0.455m
Packaging 3 - Qty 2500
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.043
Packaging 3 - Weight (kg) 8.772525kg
Packaging 3 - Width (m) 0.315m
Packaging 4 - Height (m) 1.044m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 37500
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.002
Packaging 4 - Weight (kg) 152.588kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000464
ETIM 8.0 Key EC000464
ETIM 9.0 Key EC000464
UNSPSC Key 39121702
