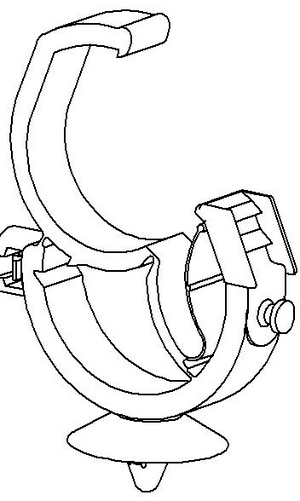

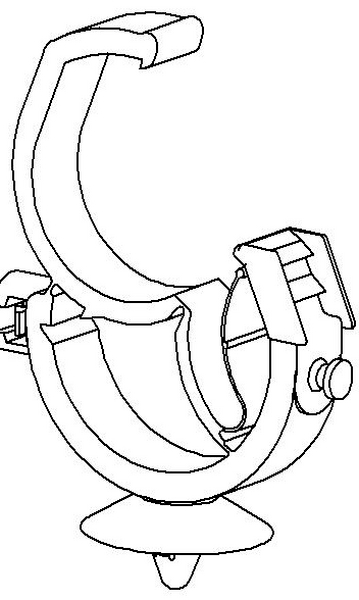

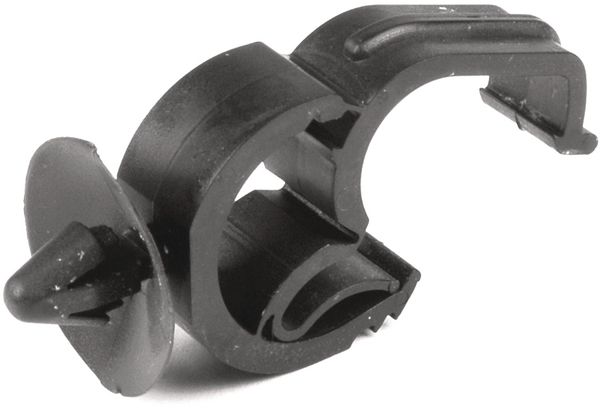

Cable clip for hole (round), ∅6.2 - 6.7 mm, Dmin=27.0mm, Dmax=36.0mm
Číslo dílu 151-00382 | IAHC4AH-PA66HIRHS-BK |  Podrobnosti na

Automatic Harness Clips offer a simple and secure method of attaching cables to panels and other surfaces.

    • Push and click closure for fixing of wires
    • AHC( )SS und AHC( )SB can be pushed onto a 5.0 mm stud
    • Vibration resistant, rattlefree and secure hold of bundle
    • In case of maintenance easy replacement of bundle possible
    • 360 degree rotatable for guiding bundles in different directions
    ukázat více
    Přidat do sledovaných položek

    Vyžádejte si nyní individuální nabídku

     Vyžádat nabídku
    Downloads CAD-Download
    Application Offering a simple and secure method of attaching cables to panels. Originally designed for the automotive industry, these products are used in a wide range of applications with sheet metal panels across various industries.
    Colour Black (BK)
    Key product features lockable, for faster processing, vibration absorbing
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION IAHC4AH-PA66HIRHS-BK
    Pack Cont. 450pcs.
    Package Content packed in carton
    Product Family IAHC-Series
    Product Group Fixing Elements for Tubes and Harnesses with Automatic Locking Feature, interconnectable
    Short Description Fixing Element 53x13.5 mm, push and click, high impact modified, heat stabilised, black
    Type IAHC4AH
    Bundle Diameter max (metric) 36.0mm
    Bundle ∅ 27.0-36.0mm
    Bundle ∅ min. 27.0mm
    Disc ∅ 24.0mm
    Length (L) 53.0mm
    Length (L2) 6.7mm
    Weight/Unit 0.01kg
    Width (W) 13.5mm
    for Hole ∅ (FH) 6.2 - 6.7 mm
    for Panel Thickness min - max 0.7 - 3 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +80 °C
    ROHS compliant Yes
    Specifications
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026337623
    Packaging 3 - Height (m) 0.3m
    Packaging 3 - Length (m) 0.4m
    Packaging 3 - Qty 450
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.036m³
    Packaging 3 - Weight (kg) 4.995kg
    Packaging 3 - Width (m) 0.3m
    Packaging 4 - Height (m) 1.044m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 10800
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.002m³
    Packaging 4 - Weight (kg) 140.88kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 39121702
