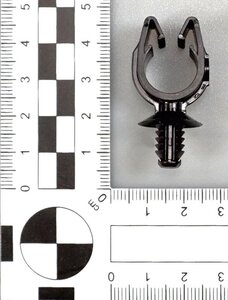

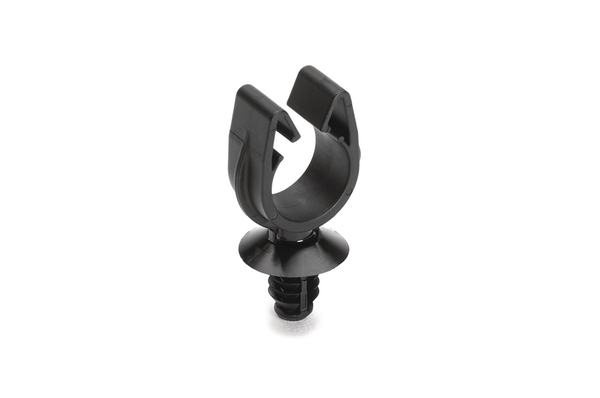

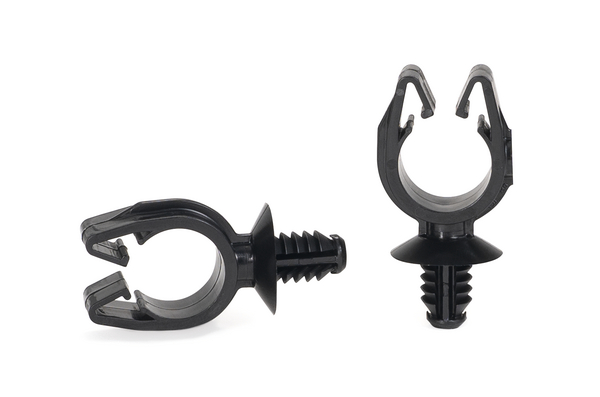

Cable clip for hole (round), T=0.6 - 5.5mm, ∅6.1 - 6.9 mm/6.35 mm (hexagonal), Dmin=13.5mm, Dmax=15.8mm, nom∅=14.0 mm
Číslo dílu 151-01768
| MOC14FT6.5-PA66HIRHSUV-BK
|
Podrobnosti na
- For fixing and bundling convoluted tubes and pipes
- Suitable for nearly every application
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Application | These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry. |
| Colour | Black (BK) |
| Fixation Method | Fir Tree |
| Key product features | removable |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | MOC14FT6.5-PA66HIRHSUV-BK |
| Pack Cont. | 3000 |
| Package Content packed in | carton |
| Product Family | with fir tree for round holes, MOC -Series |
| Product Group | Fixing elements for tubes and pipes |
| Type | MOC14FT6.5 |
| Bundle Diameter Nom. (ND) | 14.0 mm |
| Bundle Diameter max (metric) | 15.8mm |
| Bundle ∅ | 13.5-15.8mm |
| Bundle ∅ min. | 13.5mm |
| Depth (D) | 10.0mm |
| Fixing Hole Shape | Circular |
| Height (H) | 39.3mm |
| Length (L) | 20.9mm |
| Panel Thickness max. | 0.6 - 5.5mm |
| Weight/Unit | 0.001925kg |
| for Hole ∅ (FH) | 6.1 - 6.9 mm, 6.35 mm (hexagonal) |
| for Panel Thickness min - max | 0.6 - 5.5 mm |
Stáhnout
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +110 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | Yes |
|
|
|
| Country of Origin | MX |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026572178 |
| Packaging 1 - Height (m) | 0.2m |
| Packaging 1 - Length (m) | 0.5m |
| Packaging 1 - Qty | 3000 |

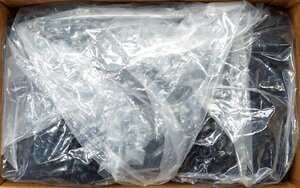

| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.031m³ |
| Packaging 1 - Weight (kg) | 5.865kg |
| Packaging 1 - Width (m) | 0.31m |
| Packaging 3 - Height (m) | 0.20955m |
| Packaging 3 - Length (m) | 0.517525m |
| Packaging 3 - Qty | 3000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0344m³ |
| Packaging 3 - Weight (kg) | 6.475kg |
| Packaging 3 - Width (m) | 0.3175m |
| Packaging 4 - Height (m) | 1.194m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 60000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.146m³ |
| Packaging 4 - Weight (kg) | 150.5kg |
| Packaging 4 - Width (m) | 0.8m |
