02/04/2025

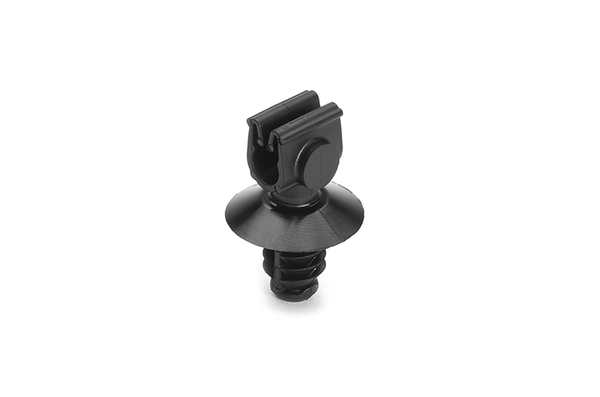

Cable clip for hole (round), T=0.6 - 5.5mm, ⌀6.1 - 6.9 mm/6.35 mm (hexagonal), Dmin=4.0mm, Dmax=5.5mm, nom⌀=5.0 mm
Číslo dílu 151-02083 | MOC5FT6.5-PA66HIRHSUV-BK

Copied
  • For fixing and bundling convoluted tubes and pipes
  • Suitable for nearly every application

Vyžádejte si nyní individuální nabídku

Application These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry.
Colour Black (BK)
Fixation Method Fir Tree
Key product features removable
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION MOC5FT6.5-PA66HIRHSUV-BK
Pack Cont. 5000
Package Content packed in pack
Type MOC5FT6.5
Bundle ⌀ 4.0-5.5mm
Bundle ⌀ max. 5.5mm
Bundle ⌀ min. 4.0mm
Bundle Diameter Nom. (ND) 5.0 mm
Depth (D) 10.0mm
Fixing Hole Shape Circular
Height (H) 26.3mm
Length (L) 17.0mm
Panel Thickness max. 0.6 - 5.5mm
for Hole ⌀ (FH) 6.1 - 6.9 mm, 6.35 mm (hexagonal)
for Panel Thickness min - max 0.6 - 5.5 mm
CE Certification No
CSA Certified No
Flammability UL 94 HB
Halogen-free Yes
Operating Temperature -40 °C to +105 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US) No
UV-Stabilised Yes
Country of Origin MX
GTIN-13 / EAN 4031026714998
Packaging 1 - Type carton
Packaging 3 - Height (m) 0.20002499999999998m
Packaging 3 - Length (m) 0.51117499999999995m
Packaging 3 - Qty 5000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0318
Packaging 3 - Weight (kg) 3.896kg
Packaging 3 - Width (m) 0.31115m
Packaging 4 - Qty 200000
Packaging 4 - Type pallet
ETIM 7.0 Key EC000464
ETIM 8.0 Key EC000464
ETIM 9.0 Key EC000464
UNSPSC Key 39121702
