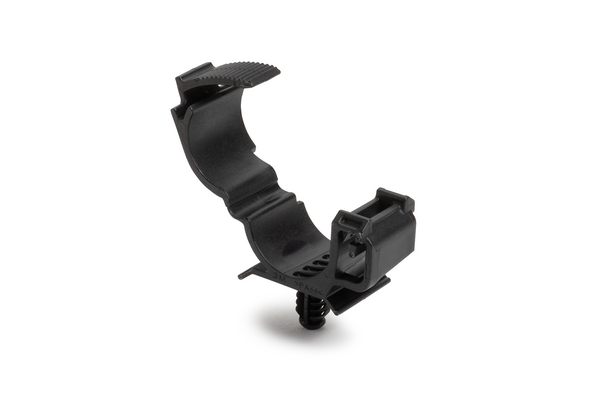

Ratchet O-Clamp
Číslo dílu 151-04351
| ROC18.5-22.5FT6.5-PA66HIRHSUV-BK
|
Podrobnosti na
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
Bundle Diameter max (metric) | 22.5mm |
Bundle ∅ | 18.5-22.5mm |
Bundle ∅ min. | 18.5mm |
Fixing Hole Shape | Circular, Hexagon |
Height (H) | 46.0mm |
Length (L) | 37.0mm |
Min.Tensile Strength | 445N |
Panel Thickness max. | 0.6 - 6.0mm |
Width (W) | 20.5mm |
for Hole ∅ (FH) | 6.1 - 6.6 mm (hexagonal), 6.1 - 7.0 mm |
for Panel Thickness min - max | 0.6 - 6 mm |
CE Certification | No |
CSA Certified | No |
Flammability | UL 94 HB |
Halogen-free | Yes |
Hazardous Goods | No |
Operating Temperature | -40 °C to +105 °C |
ROHS compliant | Yes |
Reusable (Yes/No) | Yes |
Specifications | |
UL Listed (US and Canada) | No |
UL Listed (US and Canada) | No |
UL Recognized (US and Canada) | No |
UL Recognized (US and Canada) | No |
UV-Stabilised | Yes |
