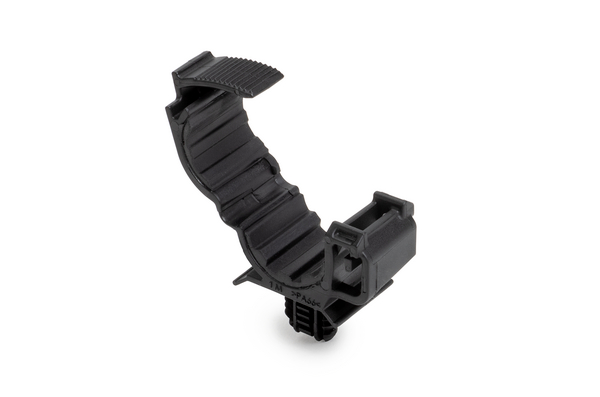

Ratchet O-Clamp
Číslo dílu 151-04076
| SGROC15.5-20FTOVAL-PA66HIRHSUV/TPE-BK
|
Podrobnosti na
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Colour | Black (BK) |
| Fixation Method | Fir Tree |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Thermoplastic Elastomer (TPE) |
| PART DESCRIPTION | SGROC15.5-20FTOVAL-PA66HIRHSUV/TPE-BK |
| Pack Cont. | 1000pcs. |
| Package Content packed in | carton |
| Product Group | Ratchet O-Clamp |
| Type | SGROC15.5-20FTOVAL |
| Bundle Diameter max (metric) | 20.0mm |
| Bundle ∅ | 15.5-20.0mm |
| Bundle ∅ min. | 15.5mm |
| Fixing Hole Shape | Oval |
| Height (H) | 46.0mm |
| Length (L) | 37.0mm |
| Min.Tensile Strength | 445N |
| Panel Thickness max. | 0.6 - 6.75mm |
| Width (W) | 20.5mm |
| for Hole ∅ (FH) | 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm |
| for Panel Thickness min - max | 0.6 - 6.8 mm |
Stáhnout
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Reusable (Yes/No) | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | Yes |
