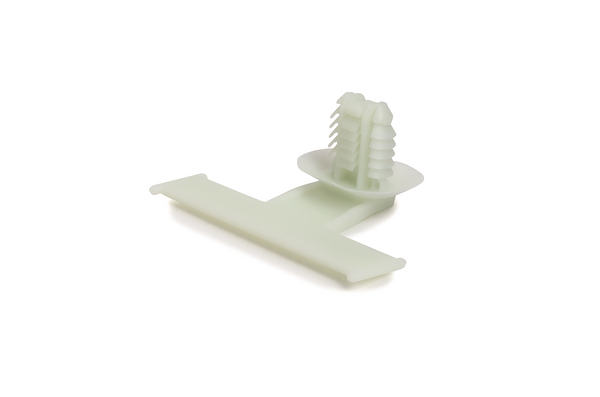

Bundling clip for hole (oval), L=50.0mm, SO=20.0mm, natural, 3000pcs.
Číslo dílu 151-00932
| SOC11FTOVAL-PA66HIRHS-NA
|
Podrobnosti na
- Simple installation, tool-free
- Is attached to the bundle element with cable ties or adhesive tape
- The oval base geometry serves as anti-twist protection and for defined cable routing
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Application | These bundling clips are mainly used in the automotive industry, particularly for the assembly of cable harnesses. They offer a simple and user-friendly method for fastening cables, hoses and pipes. |
| Colour | Natural (NA) |
| Fixation Method | Fir Tree for oval holes |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | SOC11FTOVAL-PA66HIRHS-NA |
| Pack Cont. | 3000pcs. |
| Package Content packed in | carton |
| Product Family | Oval holes |
| Product Group | Bundling Clips with Fir Tree for Distance Routing |
| Type | SOC11FTOVAL |
| Bundling Bar Length | 1.97" |
| Bundling Bar Length | 50.0mm |
| Fixing Hole Shape | Oval |
| Height (H) | 20.1mm |
| Height (H2) | 12.85mm |
| Length (L) | 50.0mm |
| Length (L2) | 20.0mm |
| Offset Length | 20.0mm |
| Panel Thickness max. | 0.6 - 6.75mm |
| Weight/Unit | 0.002266kg |
| Width (W) | 9.5mm |
| for Hole ∅ (FH) | 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm |
| for Panel Thickness min - max | 0.6 - 6.8 mm |
Stáhnout
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +110 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | No |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026436821 |
| Packaging 1 - Height (m) | 0.18m |
| Packaging 1 - Length (m) | 0.6m |
| Packaging 1 - Qty | 3000 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.04266m³ |
| Packaging 1 - Weight (kg) | 6.798001kg |
| Packaging 1 - Width (m) | 0.395m |
| Packaging 3 - Height (m) | 0.2159m |
| Packaging 3 - Length (m) | 0.606425m |
| Packaging 3 - Qty | 3000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.052m³ |
| Packaging 3 - Weight (kg) | 7.658001kg |
| Packaging 3 - Width (m) | 0.396875m |
| Packaging 4 - Height (m) | 1.224m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 45000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.175m³ |
| Packaging 4 - Weight (kg) | 135.87kg |
| Packaging 4 - Width (m) | 0.8m |
