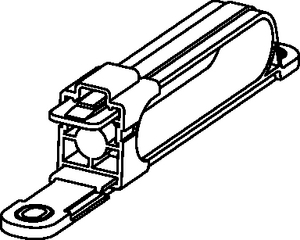

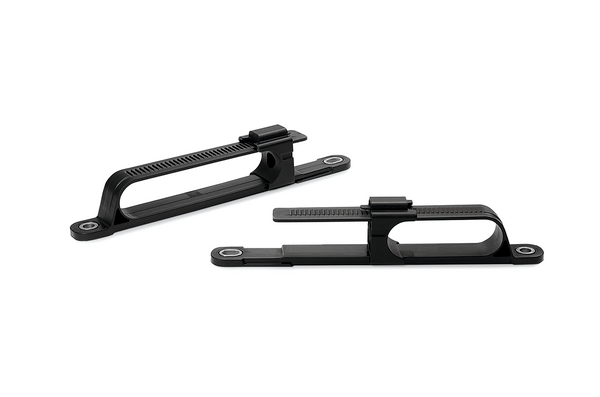

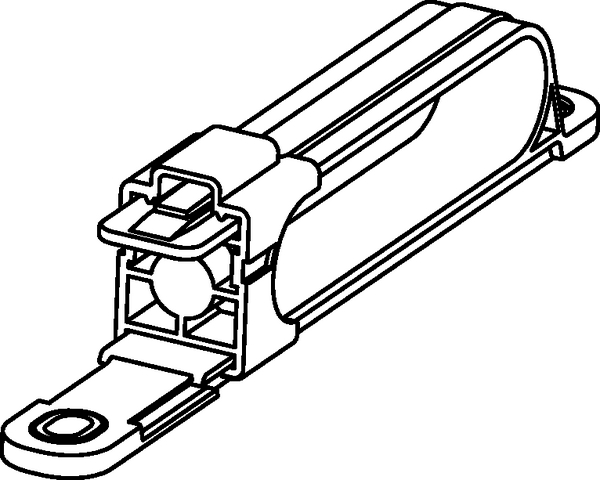

Cable clip for screw fixation/with pipe/tube holder, ⌀M8, Dmax=29.0mm
Číslo dílu 156-02742
| SRC150M8-PA6GF30-BK
|
Podrobnosti na
- Cables and tubes can be bundled in parallel
- Can be opened and closed with one hand and without tools due to lever on the sliding element
- Re-openable, thus cables can be exchanged and added when required
- Can be screwed vertically or horizontally depending on the equipment
- After being screwed the locking cover/ lever is pushed onto the cable and thus allows a flexible accommodation of the cables with regards to the number of cables to be routed
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Application | The Screwed Ratchet Clamp can be used wherever cables are to be laid in parallel. The clamp can be mounted both horizontally and vertically. In the second assembly step the cables can be inserted. The component can be used to fix various cables or cable combinations as it can be filled in a range from 25 to 150 mm. |
| Cable ⌀ max | 25mm |
| Colour | Black (BK) |
| Fixation Method | Pipe Clip |
| Key product features | for multiple routing, releasable, removable, reusable |
| Material | Polyamide 6, glass-fibre reinforced (PA6GF30) |
| Mounting Screw Type | M8 Screw |
| PART DESCRIPTION | SRC150M8-PA6GF30-BK |
| Pack Cont. | 150 |
| Package Content packed in | bag |
| Product Family | for multiple parallel cable routing |
| Product Group | Screwed Ratchet Clamp |

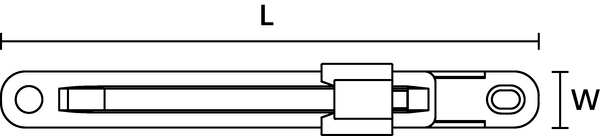

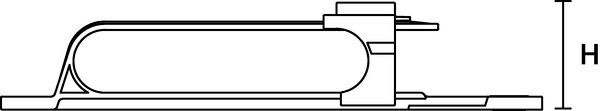

| Short Description | Harness clip (M8) 250x26 mm, screw, closeable, PA6GF30%, black |
| Type | SRC150M8 |
Stáhnout
| CAS Number | 7439-92-1 |
| Critical Substance |
Lead in Steel alloy > 0.1 |
| EC Number | 231-100-4 |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +100 °C |
| ROHS compliant | Yes |
| Specifications |
|
|
|
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability. Sustainable by design focuses on product solutions that reduce waste, improve longevity or support subsequent reuse and recyclability. |
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026624990 |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 150 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 12.3781kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 1800 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 169.537kg |
| Packaging 4 - Width (m) | 0.8m |
