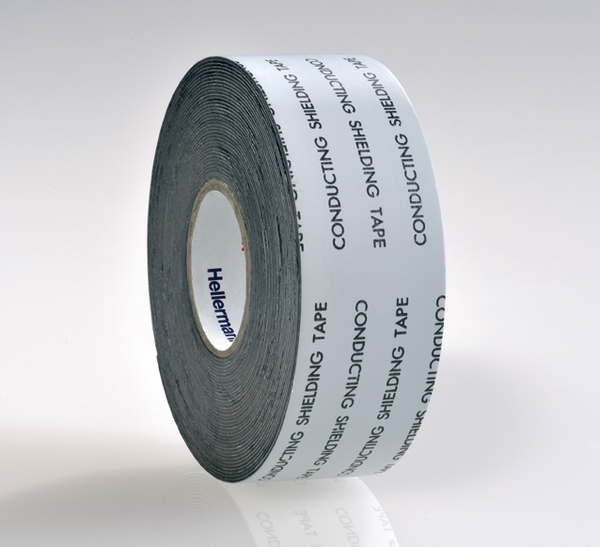

Self-amalgamating, ethylene propylene rubber semi-conducting tape 38 mm x 9.1 m black
Číslo dílu 711-10001 | HTAPE-SHIELD310-EPR-BK Podrobnosti na

  • Self-amalgamating conducting tape made from ethylene propylene rubber
  • Provides good conducting properties
  • Prevents partial discharges
  • Moisture and UV-resistant and easy to apply
  • Guidance and/or finishing of the semiconductive layer in case of repairs and connections of medium to high voltage cables.
ukázat více

Vyžádejte si nyní individuální nabídku

Colour Black (BK)
Material Ethylene Propylene Rubber (EPR)
PART DESCRIPTION HTAPE-SHIELD310-EPR-BK
Pack Cont. 1Reel
Package Content packed in reel
Product Family HelaTape Shield 310
Product Group Conductive Tapes – Electrical Semi-Conducting Tape
Short Description Self-amalgamating, ethylene propylene rubber semi-conducting tape 38 mm x 9.1 m black
Type HTAPE-SHIELD310
Length (L) 9.1m
Thickness (T) 0.76mm
Weight/Unit 0.369553kg
Width (W) 38mm
Adhesion to Backing 2N/10 mm
Adhesion to Steel 2.2N/10 mm
Breaking Strength 2N/10 mm
ELV compliant (Article 4 - 2) YES
Elongation at break 600 %
Halogen-free Yes
Hazardous Goods No
Insulating (Yes/No) No
Intermittent Operating Temperature +130°C
Operating Temperature -40 °C to +90 °C
ROHS compliant Yes
Self extinguishing Yes
Shelf Life 5 years
Specifications
Suitable for high voltage (Yes/No) Yes
Tensile Strength 2.0MPa
UV-Stabilised Yes
Volume Resistance 870 Ω cm
Water Absorption 0.02%
Country of Origin CN
Customs Number 39191012
GTIN-13 / EAN 4031026548777
Packaging 1 - Height (m) 0.038m
Packaging 1 - Length (m) 0.11m
Packaging 1 - Qty 1
Packaging 1 - Type pcs.
Packaging 1 - Volume (m³) 0.00046
Packaging 1 - Weight (kg) 0.369553kg
Packaging 1 - Width (m) 0.11m
Packaging 3 - Height (m) 0.172m
Packaging 3 - Length (m) 0.36m
Packaging 3 - Qty 24
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0158
Packaging 3 - Weight (kg) 9.369kg
Packaging 3 - Width (m) 0.255m
Packaging 4 - Height (m) 1.004m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 1080
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.964
Packaging 4 - Weight (kg) 442.617kg
Packaging 4 - Width (m) 0.8m
Storage Temperature +23 °C
Storage conditions 65% relative humidity.
ETIM 7.0 Key EC000128
ETIM 8.0 Key EC000128
ETIM 9.0 Key EC000128
