The insert sleeve functions as a transport protection and as a help to pull cables in the sleeve. This inset sleeve should be removed for application.

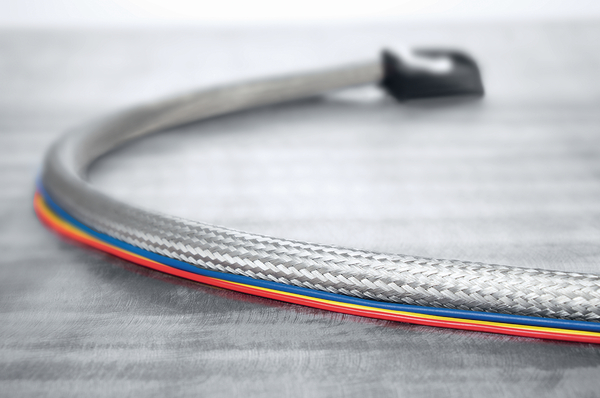

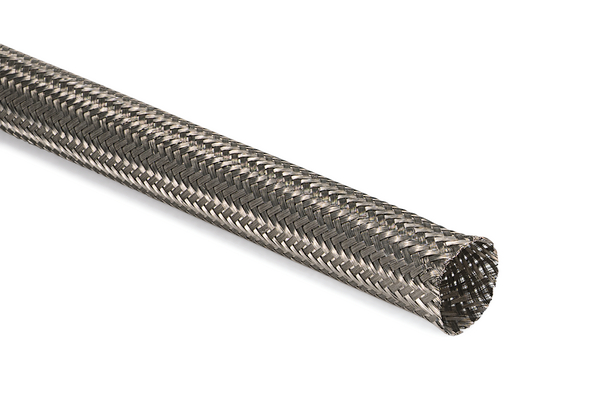

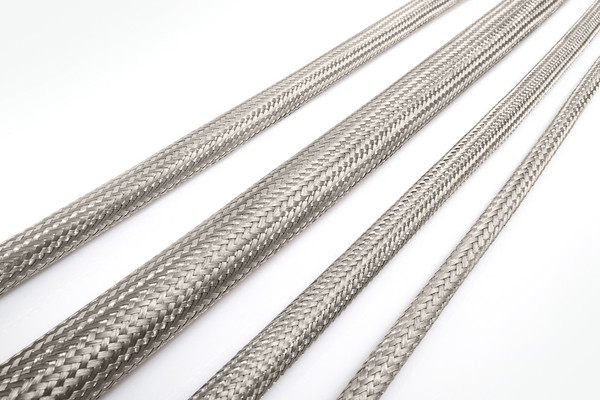

Electromagnetic protection braided sleeving ∅ 4 mm, 500 m, metal
Číslo dílu 173-00201 | HEGEMIP-VG04-SNCU-ML | Podrobnosti na

HEGEMIP-VG - VG 96936-10 approved EMI shielding sleeve.

Excellent electromagnetic protection
Very flexible, expandable and easy to apply
Especially suitable for applications in tight areas or requiring movement
Inner disposable tube protects sleeve from deformation and allows for easy insertion of cables
Very good abrasion resistance
Approved to military norm VG 96936-10 / Type A

ukázat více

Přidat do sledovaných položek

Vyžádejte si nyní individuální nabídku

Vyžádat nabídku

Najděte distributora ve svém okolí

Downloads

Více výrobků v této skupině výrobků:

Electromagnetic protection braided sleeving for defence applications >

Base Data

Application	Helagaine HEGEMIP-VG provides electromagnetic protection for the defence industry.
Colour	Metal (ML)
Internet Customer Notice	The insert sleeve functions as a transport protection and as a help to pull cables in the sleeve. This inset sleeve should be removed for application.
Key product features	EMI shielding
Material	Tin-plated copper (SNCU)
Open, post termination (Yes/No)	No
PART DESCRIPTION	HEGEMIP-VG04-SNCU-ML
Pack Cont.	500m
Product Family	Helagaine HEGEMIP-VG
Product Group	Electromagnetic protection braided sleeving for defence applications
Short Description	Electromagnetic protection braided sleeving ∅ 4 mm, 500 m, metal
Type	HEGEMIP-VG04

Product Dimensions


Bundle Diameter max (metric)	7.0mm
Bundle ∅	4.5-7.0mm
Bundle ∅ min.	4.5mm
Diameter (D)	4mm
Nominal ∅	4mm
Weight	30.0g/m
Weight/Unit	0.027kg

Downloads

Specifications

Designation as per VG-Norm	VG 96936 T10 A 002 A
ELV compliant (Article 4 - 2)	YES
Flammability	UL 94 V2, FMVSS 302
Hazardous Goods	No
Nato number	6145-12-329-2561
Operating Temperature	-65 °C to +150 °C
ROHS compliant	Yes
Specifications
Specifications	VG 96936-10

Logistics and Packaging


Country of Origin	FR
Customs Number	74198090
GTIN-13 / EAN	4031026471150
Packaging 1 - Height (m)	0.33m
Packaging 1 - Length (m)	0.45m
Packaging 1 - Qty	500
Packaging 1 - Type	reel
Packaging 1 - Volume (m³)	0.06683m³
Packaging 1 - Weight (kg)	16.16kg
Packaging 1 - Width (m)	0.45m
Packaging 3 - Height (m)	0.38m
Packaging 3 - Length (m)	0.46m
Packaging 3 - Qty	500
Packaging 3 - Type	carton
Packaging 3 - Volume (m³)	0.0804m³
Packaging 3 - Weight (kg)	17.18kg
Packaging 3 - Width (m)	0.46m
Packaging 4 - Height (m)	1.064m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	4000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.021m³
Packaging 4 - Weight (kg)	158.44kg
Packaging 4 - Width (m)	0.8m
Reel Length	500m
