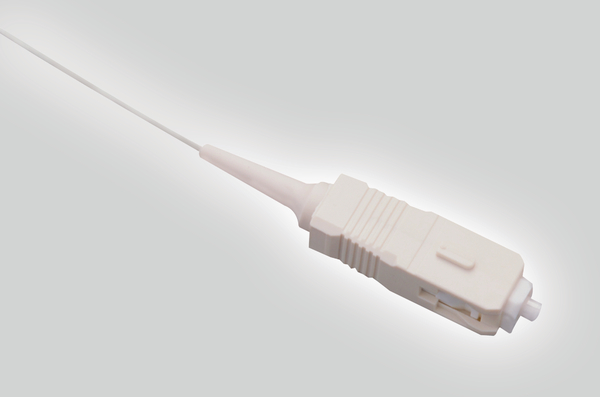

SC Single Mode Pigtails
Číslo dílu 855-25047 | FBTXOS2-SCXXSW-01.0M Podrobnosti na

  • Single mode
  • SC Connectors (LC Connectors available)
  • Manufactured to ISO standards
  • Pre-terminated connector saves installation time on site
  • Standard length 1m
  • 900µm tight buffered fibre optic cable
  • Pre-tested with test results supplied
ukázat více

Vyžádejte si nyní individuální nabídku

Application • IEC 874-14 and IEC 60322-1 Optical Compliance • Supplied With Test Results
Colour White (WH)
Connector Colour Blue (BU)
Connector Type SC
Description SC Pigtails are available in both single mode and multimode and are supplied in standard lengths of 1m. Other lengths and fibre types can be supplied on request.
PART DESCRIPTION FBTXOS2-SCXXSW-01.0M
Performance Category OS2 Single Mode
Port count 1
Product Family SC Pigtails
Product Group Fibre Pigtails
Short Description SC Single Mode Pigtails
Technical Description The SC Pigtail is designed to be spliced onto existing fibre cables, eliminating the need to polish fibre ends on site. NB. OM3 and OS1 as standard. Other fibre types (OM4, OM2, OM1 and OS2) available on request.
Type FBTXOS2-SCXXSW-01.0M
Length (L) 1.0m
Optical Performance Singlemode
Country of Origin GB
GTIN-13 / EAN 5022660132520
ETIM 7.0 Key EC000034
ETIM 8.0 Key EC000034
ETIM 9.0 Key EC000034
