Scroll down for alternative automation-ready products.

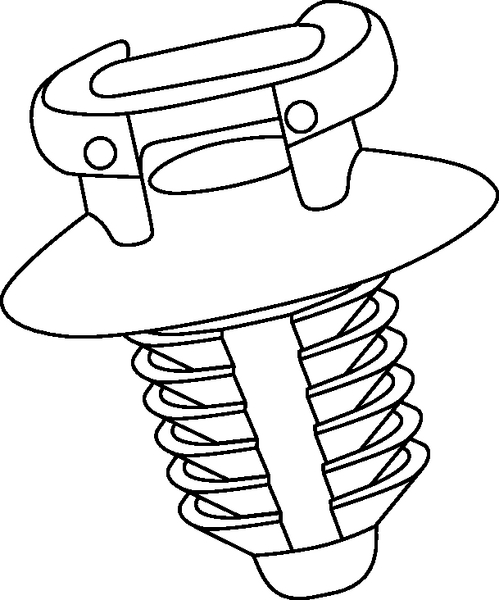

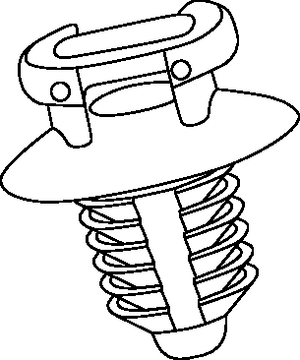

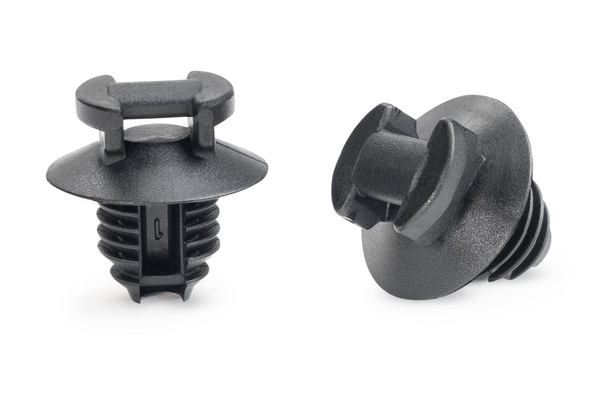

Cable tie mount, T=1.5 - 4.0mm, ∅8.0 - 8.5 mm, black, 1000pcs.
Číslo dílu 102-67081
| ATSFT8GSD-PA66HIRHS-BK
|
Podrobnosti na
- Clips to fix cables and harnesses in the automotive and white goods industries
- Optimized for use automatic cable tying systems
- Easy to apply
- The fixing elements can be tied automatically with Autotool System
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Application | Many bundling clips are used in the automotive industry, which are usually attached to the cable harness with adhesive tape. HellermannTyton has created a new, much faster solution here. The clip is attached to the right and left of the beam with a cable tie to prevent it from moving. The ribs on the underside of the beam also eliminate the need for time-consuming underwinding for small cable diameters. The ATS clips with firtree foot geometry have been specially developed for use with our Autotool systems. By using the Autotool and the special cable tie holder on the foot section, it is possible to bundle the wire harness and simultaneously secure it with a foot section in a single automated work step. |
| Colour | Black (BK) |
| Fixation Method | Fir Tree |
| Internet Customer Notice | Scroll down for alternative automation-ready products. |
| Key product features | products for automatic tools |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | ATSFT8GSD-PA66HIRHS-BK |
| Pack Cont. | 1000pcs. |
| Package Content packed in | bag |
| Product Family | Fir tree clips for automatic cable tying systems |
| Product Group | Automatic bundling |
| Short Description | Foot sections with a slat geometry specially designed for use with an ATS 3080 or ATS flex autotool. |
| Type | ATSFT8GSD |
Stáhnout
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026586427 |
| Packaging 1 - Height (m) | 0.15m |
| Packaging 1 - Length (m) | 0.3m |
| Packaging 1 - Qty | 1000 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0117m³ |
| Packaging 1 - Weight (kg) | 0.658862kg |
| Packaging 1 - Width (m) | 0.26m |
| Packaging 3 - Height (m) | 0.171m |
| Packaging 3 - Length (m) | 0.56m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0172m³ |
| Packaging 3 - Weight (kg) | 3.51431kg |
| Packaging 3 - Width (m) | 0.18m |
| Packaging 4 - Height (m) | 1.17m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 240000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.123m³ |
| Packaging 4 - Weight (kg) | 189.72kg |
| Packaging 4 - Width (m) | 0.8m |
