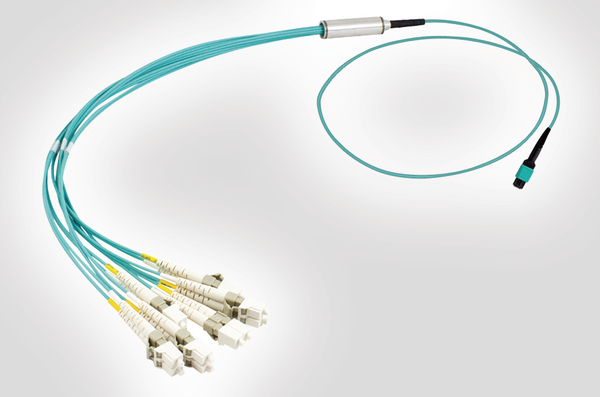

OM3 12 Core MTP to LC Fan Out
Číslo dílu 860-00030
| FLS12M3-MFLFDA-10.0M
|
Podrobnosti na
- High performance low loss Elite® Connectors from US Conec
- Compatible with all MTP RapidNet Cassettes
- Available in OM3, OM4, OS2 and OS1
- LC Fan Out ideal for inter-connect with active hardware
- Pre-tested with test results supplied
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Colour | Aquamarine (AE) |
| Connector Colour | Beige (BGE) |
| Description | The MTP to LC Fan Out is designed to provide a high density inter-connect which uses minimum space making it an ideal solution for patching active hardware in data centres where space is at a premium. The MTP connector offers high density connectivity and the LC Fan Out provides 12 LC connectors. The Fan Out cable is a multi-core cable that has a smaller diameter than the standard fibre patch lead and therefore takes up less space in the trays and pathways. |
| PART DESCRIPTION | FLS12M3-MFLFDA-10.0M |
| Performance Category | OM3 Multimode |
| Product Family | Multimode MTP to LC Fan Out |
| Product Group | 12 Core MTP Fan Out Cables |
| Short Description | OM3 12 Core MTP to LC Fan Out |
| Technical Description | The MTP to LC Fan Out is pre-terminated and pre-tested ensuring the highest performance. The MTP Connector is the low loss Elite® Connector from US Conec and is compatible with all RapidNet MTP Cassettes. All MTP Connectors and Adaptors are keyed so they connect in the correct orientation ensuring the polarity of the link. This ensures that the installation is as quick and smooth as possible and error free. The fan out unit includes integral strain relief and the furcation tubing on the individual fibres means that the breakout fibres can be used as a standard patch lead. NB: Part numbers shown are for a 10m length, other lengths are available. The standard fan out breakout length is 0.5m for cable lengths between 2m and 5m and 1m for cable lengths over 5m. |
| Type | FLS12M3-MFLFDA-10.0M |
