OM3 12 Core Back-Bone Cable
Číslo dílu 860-00020
| FLS12M3-MFMFXA-10.0M
|
Podrobnosti na
- High performance low loss Elite® Connectors from US Conec
- Compatible with all MTP RapidNet Cassettes
- Available in OM3, OM4, OS2 and OS1 in 12 or 24 core
- Can be used as back-bone fibre link or MTP Patch Lead
- Pre-tested with test results supplied
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Colour | Aquamarine (AE) |

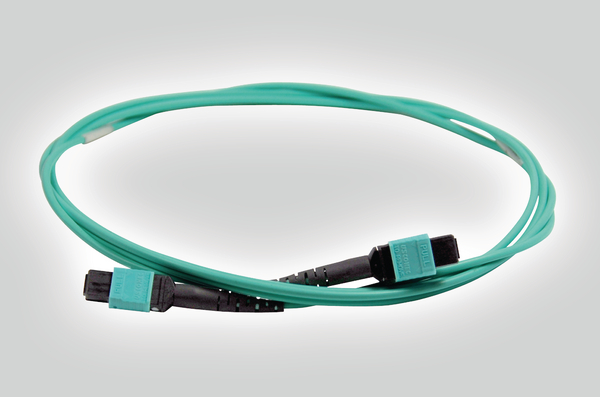

| Description | The MTP Back-Bone cable is pre-terminated and pre-tested ensuring the highest performance. The MTP Connector is the low loss Elite® Connector from US Conec and is compatible with all RapidNet MTP Cassettes. The MTP Back-Bone cable can be used for high density patching between two MTP ports and is particularly suited to applications where space is limited. |
| PART DESCRIPTION | FLS12M3-MFMFXA-10.0M |
| Performance Category | OM3 Multimode |
| Product Family | Multimode MTP |
| Product Group | 12 Core MTP Back-Bone Cables |
| Short Description | OM3 12 Core Back-Bone Cable |
| Technical Description | US Conec MTP Connectors provide quick and simple connection for 12 or 24 fibres in a single housing. The Elite® low loss Connector ensures the optical alignment through patented high precision pins and floating ferrule and conforms to IEC 61754-7 and TIA 604-5. NB. Part numbers shown are for 10m length, other lengths are available. |
| Type | FLS12M3-MFMFXA-10.0M |
