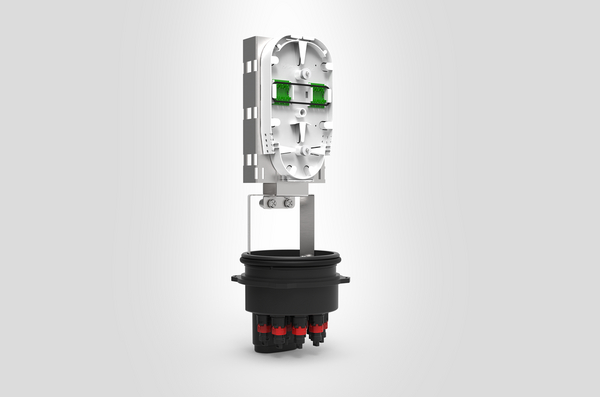

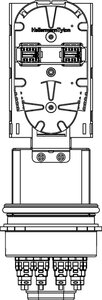

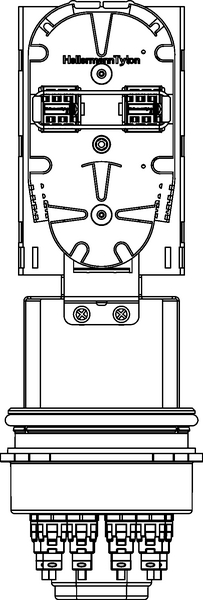

FRBU IP9 with 8 SC/APC IP9 Adaptors
Číslo dílu 857-02783
| FRBCT-MXXIA21T8
|
Podrobnosti na
- 8 SC/APC IP9 Connections
- Maximum splice capacity 48 3A (double stacked)
- 8 IP9 ports and 1 oval port
- Fibre storage basket for mid-span applications
- 2 x Hellapon Small trays
- Positive fibre management to ensure consistent 30mm bend radius throughout
- Cablelok compatible for the LM port
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Colour | Black (BK) |
| Content |
IP9 SC/APC Connectors (8) FRBU IP9 Base M Length Cover Quick Release Clamp Sealing 'O' Ring Tray Support Frame Anchor Fixing Kit (2) Hellapon Small Tray 3A (2) |
| Material | Polypropylene (PP) |
| Method of Sealing | Cablelok |
| PART DESCRIPTION | FRBCT-MXXIA21T8 |
| Package Content packed in | box |
| Port count | 8 |
| Product Family | M Length with 8 SC/APC IP9 Adaptors |
| Product Group | FRBU IP9 Connectorised |
| Qty Trays | 2 |
| Short Description | FRBU IP9 with 8 SC/APC IP9 Adaptors |
| Splice Capacity | 48 |
| Technical Description | The IP9 Hardened Connector M length closure is an IP68 dome closure manufactured from UV stable polypropylene with a base configuration of 8 IP9 ports and 1 oval port. The IP9 ports are configured with SC/APC simplex adaptors and the oval port accommodates a cable diameter range of 4.0mm to 15.0mm (LM Port) when using cablelok mechanical seals. The closure mounting system is manufactured from Grade 304 stainless steel and supports 2 Hellapon Small splice trays and a fibre storage basket. The Hellapon Small trays are fitted with 3A splice bridges. The base has an integrated closure mounting point which can be used with the FRBU moulded mounting brackets for mounting on a wall, pole or Mobra arm and allows the cover to be removed and the closure to stay in place during installation or maintenance. |
| Type | FRBCT-MXXIA21T8 |
| Type of Tray | Hellapon Small |
| Variant | Outdoor Enclosure |
Stáhnout
FRBCT-MXXIA21T8-2x1:4
857-02780
FRBCT-MXXIA21T8-8XPT
857-02782
