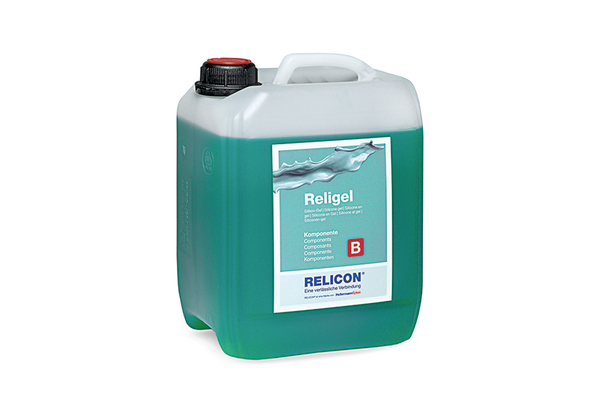

Gel, Silicone (SI) green/transparent, 10000ml
Číslo dílu 435-00753
| Religel Plus 10.000-SI-CL/GN
|
Podrobnosti na
- Timesaving due to fast curing time
- Stable up to 200 °C
- Visual control of the homogenous mixture indicated by green-coloured component B
- Multiple use possible, mixing ratio 1:1
- Excellent flow and insulating properties
- Excellent moisture and chemical resistance
- Soft elastic, vibration absorbing and removable residue-free
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Application | RELICON Religel Plus is a green-transparent, elastic 2-component silicone gel. It is packed in practical bottles or canisters including measuring cup and mixing stick. It is particularly suited to fill junction boxes for low voltage applications. Electrical insulation in low-voltage applications, Encapsulation of cables and wires in junction boxes, Building and household installations, Belowground, submerged. |
| Colour | Green (GN), Transparent (CL) |
| Density | 0.97 g/cm³, 20 °C (DIN EN ISO 2811-2) |
| Key product features | vibration absorbing |
| Material | Silicone (SI) |
| PART DESCRIPTION | Religel Plus 10.000-SI-CL/GN |
| Pack Cont. | 10000ml |
| Package Content packed in | bulk |
| Pot Life | 5 min. 23°C |
| Product Family | Religel Plus |
| Product Group | RELICON Religel Plus |
| Short Description | Religel Plus |
| Type | Religel Plus 10.000 |
| Viscosity | 1000 mPa*s, 23 °C (EN ISO 2555) |
Stáhnout
| Dielectric Strength | 25kV/mm |
| ELV compliant (Article 4 - 2) | YES |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -60 °C to +200 °C |
| ROHS compliant | Yes |
| Shelf Life | Unlimited |
| Specifications |
|
| Specifications | IEC 60529, Edition 2.2, 2013-08 |
| Thermal Conductivity (max.) | 0.15W/mK |
| Thermal Conductivity (min.) | 0.15W/mK |
| Vibrations absorbing | Yes |
| Country of Origin | IT |
| Customs Number | 39100000 |
| GTIN-13 / EAN | 4031026599670 |
| Packaging 3 - Height (m) | 0.347m |
| Packaging 3 - Length (m) | 0.435m |
| Packaging 3 - Qty | 1 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0302m³ |
| Packaging 3 - Weight (kg) | 12.12kg |
| Packaging 3 - Width (m) | 0.2m |
| Packaging 4 - Height (m) | 0.964m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 14 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.925m³ |
| Packaging 4 - Weight (kg) | 222.56kg |
| Packaging 4 - Width (m) | 0.8m |
| Spray content | 9700g |
| Storage Temperature | +4 °C to +40 °C |
