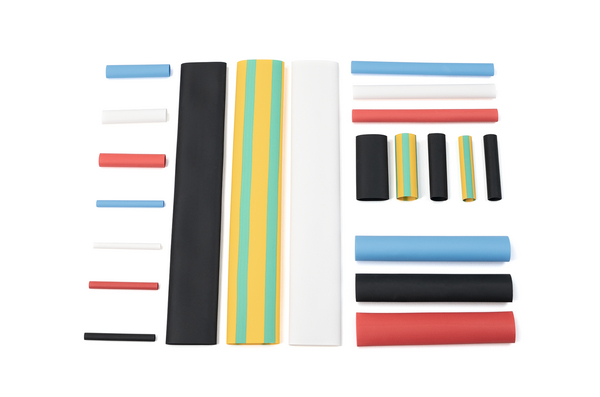

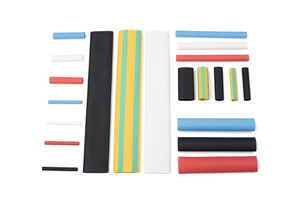

Heat Shrinkable Tubing 3:1 Kit including different colours and handy sizes
Číslo dílu 380-03005
| ShrinKit 321 Universal Basic-PO-X-MIX
|
Podrobnosti na
- Compact and handy kit
- Black and coloured tubing
- Available in a wide size range of 3 mm to 18.0 mm

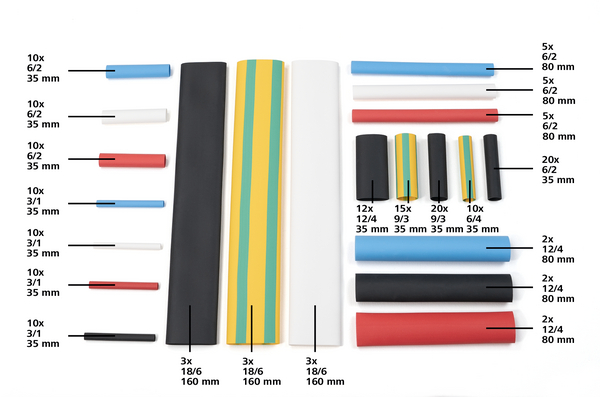

- 177 precut pieces in five sizes
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Application | With ShrinKit 321 HellermannTyton has set a new standard in heat shrink tubing: ShrinKit tubings cover many applications with their ideal shrink ratio of 3:1. |
| Application Method | Use hot air tool |
| Colour | Black (BK), Blue (BU), Red (RD), White (WH), Green-Yellow (GNYE) |

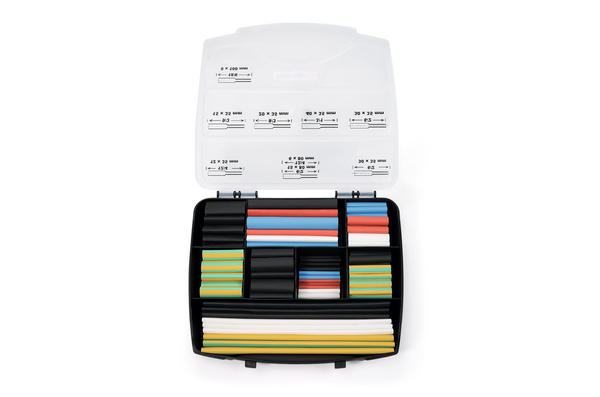

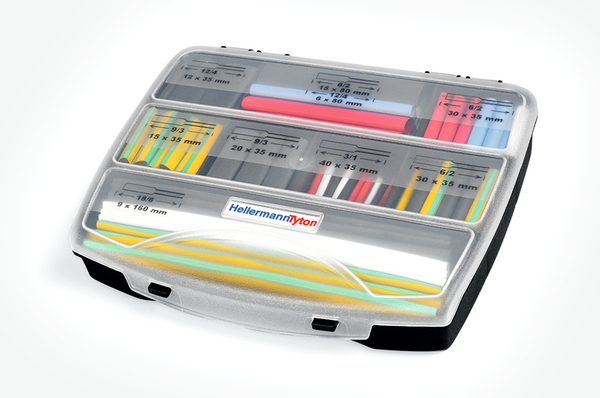

| Content | This compact kit contains a selection of widely used coloured tubing in five sizes and five colours in different lengths. The kit contains 177 pieces in total. |
| Material | Polyolefin, cross-linked (PO-X) |
| PART DESCRIPTION | ShrinKit 321 Universal Basic-PO-X-MIX |
| Pack Cont. | 1Set |
| Package Content packed in | kit |
| Printable | No |
| Product Family | ShrinKit 321 Universal Basic |
| Product Group | Heat Shrinkable Tubing 3:1 in a Kit |
| Short Description | Heat Shrinkable Tubing 3:1 Kit including different colours and handy sizes |
| Shrink Ratio | 3:1 |
| Type | ShrinKit 321 Universal Basic |
| Variant | Thin-Wall |
| With inner glue (Yes/No) | No |
Stáhnout
| CE Certification | No |
| CSA Certified | No |
| Dielectric Strength | 20kV/mm |
| Dielectric Strength test method | ASTM D2671 |
| ELV compliant (Article 4 - 2) | YES |
| Elongation at break | 600% |
| Halogen-free | No |
| Hazardous Goods | No |
| Insulation Class | B (VDE 0530) |
| Min. Shrink Temperature - °C | +90 °C |
| Operating Temperature | -55 °C to +135 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Specifications |
|
| Tensile Strength | 14MPa |
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | No |
|
|
|
| Country of Origin | PL |
| Customs Number | 39173200 |
| GTIN-13 / EAN | 4031026325804 |
| Packaging 1 - Height (m) | 0.038m |
| Packaging 1 - Length (m) | 0.19m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | carton |
| Packaging 1 - Volume (m³) | 0.00137m³ |
| Packaging 1 - Weight (kg) | 0.78kg |
| Packaging 1 - Width (m) | 0.19m |
| Packaging 3 - Height (m) | 0.18m |
| Packaging 3 - Length (m) | 0.42m |
| Packaging 3 - Qty | 22 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0302m³ |
| Packaging 3 - Weight (kg) | 17.66kg |
| Packaging 3 - Width (m) | 0.4m |
| Packaging 4 - Height (m) | 1.224m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 528 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.175m³ |
| Packaging 4 - Weight (kg) | 444.84kg |
| Packaging 4 - Width (m) | 0.8m |
