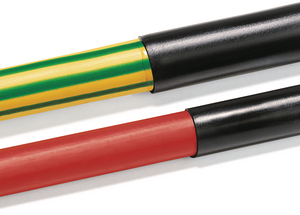

Heat Shrinkable Tubing Thin Wall with Adhesive Liner 3:1 L=1.2m 9/31 black
Číslo dílu 318-30900
| TA32-9/3-PO-X-BK
|
Podrobnosti na
- Thin wall adhesive-lined heat shrink tubing
- Highly flame retardant
- Outer wall conforms to UL224
- High shrink ratio
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Application | TA32/TA42 is designed for environmental sealing and electrical insulation of wire splices, terminations and components. |
| Behaviour at Heat Shock | not cracking, not dripping, not fluid |
| Colour | Black (BK) |
| Heat Shock Test | 4h/250°C |
| Material | Polyolefin, cross-linked (PO-X) |
| PART DESCRIPTION | TA32-9/3-PO-X-BK |
| Pack Cont. | 125pcs. |
| Package Content packed in | pcs. |
| Printable | No |
| Product Family | TA32 - thin wall, 3:1 shrink ratio |
| Product Group | Heat shrinkable tubing adhesive lined - 1.2 m lengths |
| Short Description | Heat Shrinkable Tubing Thin Wall with Adhesive Liner 3:1 L=1.2m 9/31 black |
| Shrink Ratio | 3:1 |
| Type | TA32-9/3 |
| Variant | Thin-Wall |
| With inner glue (Yes/No) | Yes |
Stáhnout
| Adhesive | Hot melt adhesive |
| CSA Certified | Yes |
| Dielectric Strength | 25kV/mm |
| Dielectric Strength test method | ASTM D876 |
| ELV compliant (Article 4 - 2) | YES |
| Elongation at break | 350% |
| Elongation at break test method | ASTM D638 |
| Flammability | UL 224 VW-1 |
| Halogen-free | No |
| Hazardous Goods | No |
| Min. Shrink Temperature - °C | +110 °C |
| Nato number | 5970-12-412-3978 |
| Operating Temperature | -55 °C to +125 °C |
| ROHS compliant | Yes |
| Softening Point Adhesive | +110 °C |
| Specifications | ANSI/UL 224, C22.2 no. 198.1-99 |
| Specifications |
|
| Tensile Strength | 15MPa |
| Test Method Tensile Strength | ASTM D638 |
| UL OCD link | Odkaz |
| UL Recognized (US and Canada) | Yes |
| UL-File Number | E198023 |
| Volume Resistance | 10¹⁴ Ω cm |
| Volume Resistance test method | ASTM D876 |
| Water Absorption | 0.5% |
| Country of Origin | DE |
| Customs Number | 39173200 |
| GTIN-13 / EAN | 4031026224923 |
| Packaging 1 - Height (m) | 0.39m |
| Packaging 1 - Length (m) | 1.27m |
| Packaging 1 - Qty | 25 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.1164m³ |
| Packaging 1 - Weight (kg) | 0.575001kg |
| Packaging 1 - Width (m) | 0.235m |
| Packaging 3 - Height (m) | 0.145m |
| Packaging 3 - Length (m) | 1.5m |
| Packaging 3 - Qty | 125 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0435m³ |
| Packaging 3 - Weight (kg) | 3.375kg |
| Packaging 3 - Width (m) | 0.2m |
| Packaging 4 - Height (m) | 2.0m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 2500 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.92m³ |
| Packaging 4 - Weight (kg) | 88.5kg |
| Packaging 4 - Width (m) | 0.8m |
