4-Way Outlet Shapes, Breakout Boots
Číslo dílu 404-09021
| 409-2-B8W2-PO-X-BK
|
Podrobnosti na
- Easy, time-saving insulation of cable branch point where it splits into single wires
- Made of tough, cross-linked, Polyolefin
- Adhesive is applied to relieve mechanical tension in cable harnesses
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Application | Cable breakouts are manufactured from a tough cross-linked flame retarded polyolefin. This allows the breakouts to be used for both interior and exterior applications. The adhesive liner offers excellent electrical and mechanical protection and are available for 2, 3, 4, 5 and 6 core cables. |
| Colour | Black (BK) |
| Material | Polyolefin, cross-linked (PO-X) |
| PART DESCRIPTION | 409-2-B8W2-PO-X-BK |
| Pack Cont. | 1pc. |
| Package Content packed in | bag |
| Product Family | Helashrink 400 Series, in line, low voltage |
| Product Group | 4-Way Outlet Shapes, Breakout Boots |
| Shrink Ratio | up to 3:1 |
| Type | 409-2-B8W2 |
| Variant | For 4-core cables |
|
|

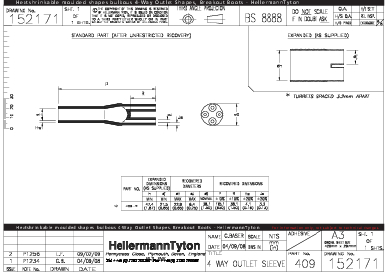

| Bundle Diameter max (metric) | 70.0mm |
| Bundle ∅ min. | 35.0mm |
| Flexibility | semi rigid |
| HW ± 20 % | 4.1mm |
| JW ± 20 % | 3.3mm |
| P ± 10 % | 165mm |
| R ± 10 % | 38.1mm |
| Recov. ∅ d max. | 22.9mm |
| S nom. | 38.1mm |
| Supplied ∅ D min. | 47.4mm |
| Weight/Unit | 0.070981kg |
| Wire Size Range (mm²) | 35-70mm |
| ∅H max. b | 22.9mm |
| ∅H min. a | 47.4mm |
| ∅J max. b | 6.4mm |
| ∅J min. a | 21.5mm |
Stáhnout
|
|
|
| Country of Origin | GB |
| Customs Number | 39174000 |
| GTIN-13 / EAN | 5022660647932 |
| Packaging 1 - Height (m) | 0.06m |
| Packaging 1 - Length (m) | 0.116m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | pcs. |
| Packaging 1 - Volume (m³) | 0.00042m³ |
| Packaging 1 - Weight (kg) | 0.071kg |
| Packaging 1 - Width (m) | 0.06m |
| Packaging 4 - Type | pallet |
