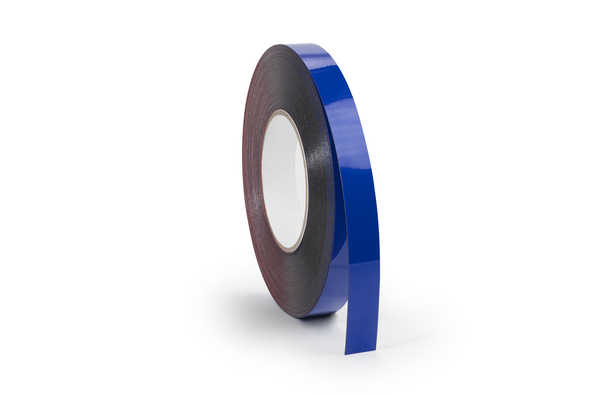

Label, blue, thermal transfer print, 18.0mm, 25m
Číslo dílu 596-00701
| TAGR18TDK1-1223-BU
|
Podrobnosti na
- Cost-effective replacement for engraved plastic plates, no need for additional label holder
- High performance adhesive and compressible foam backing ensures optimal adhesion to uneven surfaces if required
- Rounded corners ensure better long term durability of adhesion
- Print high contrast text and barcodes
- Print ‘On Site’ not order ‘Off Site’
- Special sizes and colours are possible on request
- For outstanding chemical resistance use TT122OUT
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Application | Panel labels are durable adhesive labels especially made from a thick material that is designed to replace traditional engraved plastic plates. The blue glossy colour is suited to industrial control panels, switchgear, data racks and general equipment labelling. Create crisp and clear professional looking labels by printing with HellermannTyton thermal transfer printers and ribbons. Simple label design creation is easily achieved using TagPrint Pro. |
| Application Method | The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance. |
| Chem. Material Properties | Excellent resistance to ageing, weathering and UV-radiation. Extensive resistance to the influence of chemicals and solvents. |
| Colour | Blue (BU) |
| Material | Type 1223, Polyester, blue (1223) |
| Mech. material properties | Permanent adhesive with an elastic foam carrier |
| PART DESCRIPTION | TAGR18TDK1-1223-BU |
| Pack Cont. | 25m |
| Package Content packed in | carton |
| Product Family | Helatag 1223 |
| Product Group | Panel plate labels, thermal transfer |
| Self adhesive (Yes/No) | Yes |
| Short Description | Panel Plate Labels for Thermal Transfer Printing 18mmx25m blue |
| Type | TAGR18TDK1 |
Stáhnout
| Adhesive | Acrylic |
| Curing Temperature | from +10 °C |
| ELV compliant (Article 4 - 2) | YES |
| Halogen-free | No |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +90 °C |
| Pre-Printed | No |
| ROHS compliant | Yes |
| Recommended Ribbon Type | TT122OUT, TT822OUT |
| Shelf Life | Minimum 1 year upon receipt / maximal 2 years after production date. |
| Specifications |
|
|
|
|
| Country of Origin | DK |
| Customs Number | 39199080 |
| GTIN-13 / EAN | 4031026640068 |
| Labels per Row | 1pc. |
| Packaging 1 - Height (m) | 0.018m |
| Packaging 1 - Length (m) | 0.173m |
| Packaging 1 - Qty | 25 |
| Packaging 1 - Type | reel |
| Packaging 1 - Volume (m³) | 0.00054m³ |
| Packaging 1 - Weight (kg) | 0.431kg |
| Packaging 1 - Width (m) | 0.173m |
| Packaging 2 - Height (m) | 0.06m |
| Packaging 2 - Length (m) | 0.173m |
| Packaging 2 - Qty | 25 |
| Packaging 2 - Type | carton |
| Packaging 2 - Volume (m³) | 0.0018m³ |
| Packaging 2 - Weight (kg) | 0.506kg |
| Packaging 2 - Width (m) | 0.175m |
| Reel Length | 25.00m |
| Storage Temperature | +21 °C |
| Storage conditions | 50% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness. |
