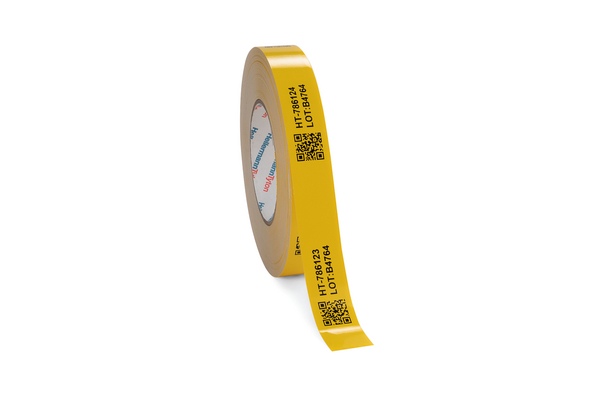

Label, yellow, thermal transfer print, 25.00mm, 200m
Číslo dílu 596-03103 | TAGR4TD1-1213-YE | Podrobnosti na

Vyžádejte si nyní individuální nabídku

Vyžádat nabídku

Najděte distributora ve svém okolí

Více výrobků v této skupině výrobků:

Application	These coloured labels are used to identify storage systems with barcode and location information. They are also suitable for general marking of parts and components, samples and blocked goods in quality assurance, storage boxes and barrels.
Application Method	The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance.
Chem. Material Properties	Resistant to water, alcohol, most oils, greases, fuel, aliphatic solvents, weak acids, salts and alkalis.
Colour	Yellow gloss (GSYE)
Material	Type 1213, Vinyl, glossy colours (1213)
Mech. material properties	Due to its flexibility and adhesiveness the material is also suitable for rough surfaces.
PART DESCRIPTION	TAGR4TD1-1213-YE
Pack Cont.	200m
Package Content packed in	carton
Product Family	Helatag 1213
Product Group	Warehouse and pipe labelling, thermal transfer
Self adhesive (Yes/No)	Yes
Short Description	Warehouse Labelling for Thermal Transfer Printing 25 mm yellow
Type	TAGR4TD1


Print Method	thermal transfer print
Print Method (Alternative)	laser beam print
Thickness (T)	66.0µm
Thickness of Foil	95
Thickness of foil test method	ISO 534
Weight/Unit	0.006861kg
Width (W)	25.00mm
Width of Liner (WL)	25.00mm

Adhesive	Acrylic
Curing Temperature	from +8 °C
ELV compliant (Article 4 - 2)	YES
Halogen-free	No
Hazardous Goods	No
Initial tack	16N/25 mm
Initial tack	FINAT FTM 1
Operating Temperature	-40 °C to +90 °C
Peel strength	27 N/15 mm
Peel strength test method	DIN 53455-5
Pre-Printed	No
ROHS compliant	Yes
Recommended Ribbon Type	TT822OUT, TTRW, TT822OUT8
Shear strength	1.5
Shear strength test method	DIN 53455-5
Shelf Life	Minimum 1 year upon receipt / maximal 2 years after production date.
Specifications


Country of Origin	DE
Customs Number	39199080
GTIN-13 / EAN	4031026295428
Labels per Row	1pc.
Packaging 1 - Height (m)	0.027m
Packaging 1 - Length (m)	0.15m
Packaging 1 - Qty	50
Packaging 1 - Type	reel
Packaging 1 - Volume (m³)	0.00061m³
Packaging 1 - Weight (kg)	0.34303kg
Packaging 1 - Width (m)	0.15m
Packaging 2 - Height (m)	0.12m
Packaging 2 - Length (m)	0.156m
Packaging 2 - Qty	200
Packaging 2 - Type	carton
Packaging 2 - Volume (m³)	0.0028m³
Packaging 2 - Weight (kg)	1.47212kg
Packaging 2 - Width (m)	0.15m
Packaging 3 - Height (m)	0.184m
Packaging 3 - Length (m)	0.58m
Packaging 3 - Qty	1200
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0406m³
Packaging 3 - Weight (kg)	9.43272kg
Packaging 3 - Width (m)	0.38m
Packaging 4 - Height (m)	1.248m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	28800
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.198m³
Packaging 4 - Weight (kg)	247.385kg
Packaging 4 - Width (m)	0.8m
Reel Length	50.00m
Storage Temperature	+21 °C
Storage conditions	50% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness.
