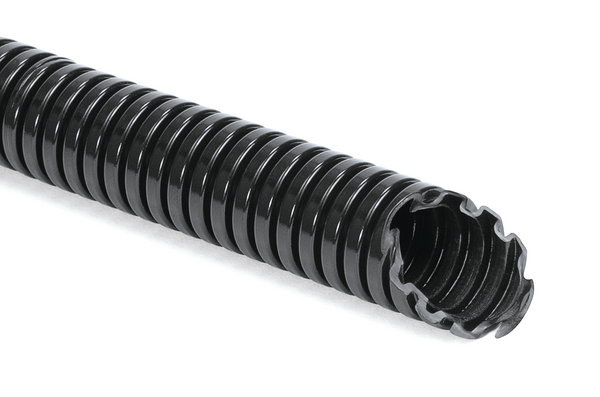

Heavy weight corrugated flexible conduit PA6 ø34mm reel 25m
Číslo dílu 166-11306
| HG-HW34-PA6-BK
|
Podrobnosti na
- Heavy weight
- High mechanical strength
- Very abrasion resistant
- High impact strength
- Highly resistant to solvents and oils
- Free of halogen, sulphur and phosphorus
- Self-extinguishing according to UL94 V2
- Colour: black
![](https://www.hellermanntyton.com/shared/speclogos/99593_All_Languages.jpg)
![](https://www.hellermanntyton.com/shared/speclogos/99595_All_Languages.jpg)
![](https://www.hellermanntyton.com/shared/speclogos/844489_All_Languages.jpg)
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
Application | Heavy weight corrugated flexible conduit for high mechanical demands, including heavy-duty machine buidling, plant construction, and public buildings. |
Colour | Black (BK) |
Material | Polyamide 6 (PA6) |
PART DESCRIPTION | HG-HW34-PA6-BK |
Pack Cont. | 25m |
Package Content packed in | reel |
Pitch Type | coarse |
Product Family | HG-HW PA6 Heavy Weight |
Product Group | Non-Metallic Conduits |
Short Description | Heavy weight corrugated flexible conduit PA6 ø34mm reel 25m |
Type | HG-HW34 |
CE Certification | Yes |
ELV compliant (Article 4 - 2) | YES |
EN61386 Classification | 24244066-310 |
Flammability | UL 94 V2 |
Halogen-free | Yes |
Hazardous Goods | No |
IP-Rating | IP66 (in conjunction with HG fittings) |
Oil resistant | Yes |
Operating Temperature | -40 °C to +120 °C |
ROHS compliant | Yes |
Specifications |
![]() ![]() ![]() ![]() |
Specifications | csa-C22.2 No.227.3, IEC 61386 |
UL OCD link | Odkaz Odkaz Odkaz Odkaz |
UL Recognized (US and Canada) | Yes |
UL-File Number | E325250 |
Country of Origin | GB |
Customs Number | 39173200 |
GTIN-13 / EAN | 4031026302539 |
Packaging 1 - Height (m) | 0.27m |
Packaging 1 - Length (m) | 0.47m |
Packaging 1 - Qty | 25 |
Packaging 1 - Type | reel |
Packaging 1 - Volume (m³) | 0.05964m³ |
Packaging 1 - Weight (kg) | 4.446kg |
Packaging 1 - Width (m) | 0.47m |
Packaging 3 - Height (m) | 1.12m |
Packaging 3 - Length (m) | 1.2m |
Packaging 3 - Qty | 400 |
Packaging 3 - Type | carton |
Packaging 3 - Volume (m³) | 1.0752m³ |
Packaging 3 - Weight (kg) | 75.3384kg |
Packaging 3 - Width (m) | 0.8m |
Packaging 4 - Height (m) | 1.264m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 400 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 1.213m³ |
Packaging 4 - Weight (kg) | 96.338kg |
Packaging 4 - Width (m) | 0.8m |
Reel Length | 25m |
