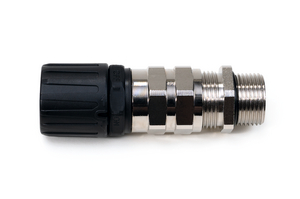

Straight cable gland fitting IP66 ø34mm M32 black
Číslo dílu 166-21505
| HG34-SCG-M32-PA66/NPB-BK
|
Podrobnosti na
- Provides strain relief
- Seals cable at IP68 and IP69k
- High pull-off strength
- Highly resistant to solvents and oils
- Free of halogen, sulphur and phosphorus
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Application | Straight fitting with cable seal and strain relief. |
| Brass Thread (Y/N) | Yes |
| Cable ∅ max | 21mm |
| Cable ∅ min | 11mm |
| Colour | Black (BK) |
| Material | Polyamide 6.6 (PA66), Nickel Plated Brass (NPB) |
| PART DESCRIPTION | HG34-SCG-M32-PA66/NPB-BK |
| Pack Cont. | 10pcs. |
| Package Content packed in | bag |
| Product Family | HG-SCG Straight fitting, IP66 |
| Product Group | Fittings with strain relief and cable seal |
| Short Description | Straight cable gland fitting IP66 ø34mm M32 black |
| Strain Relief Function (Y/N) | Yes |
| Swivel Thread (Y/N) | No |
| Thread type | metric |
| Type | HG34-SCG-M32 |
| Type of connection | Snap-connection |
| Variant | Straight |
Stáhnout
| CAS Number | 7439-92-1 |
| Critical Substance |
Lead in Copper alloy |
| EC Number | 231-100-4 |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| IP-Rating | IP66 (in conjunction with HG fittings) |
| Operating Temperature | -50 °C to +135 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | UL-Recognized |
