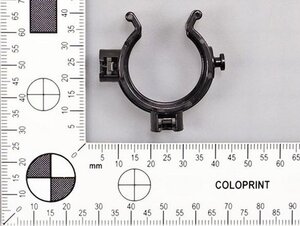

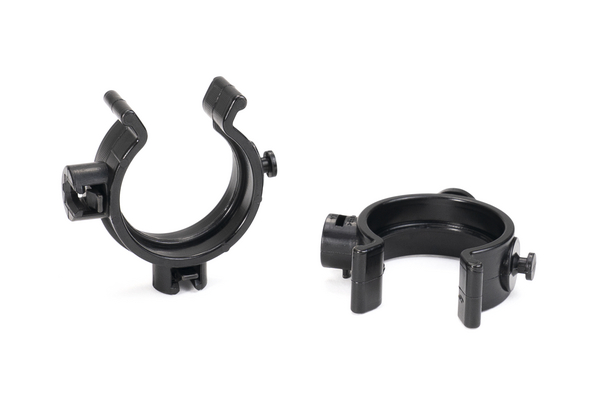

Accessory for HWBASE, HWPA-V025, Helawrap, black, 50pcs. (HWCLIP25)
Číslo dílu 161-64008
| HWCLIP25-PA66HIRHS-BK
|
Podrobnosti na
- Mounts and routes Helawrap cable cover flexibly and efficiently
- Fit snugly around the cable cover and holds it tight
- Each clip can be joined to mounting plate or other clips of any size
- Each clip rotates freely
- Easily released and re-used
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
Application | To complete the Helawrap cable management system various Helawrap Clips in compatible sizes are available. The mounting clips can be combined and adjusted individually. Attached to a mounting base the assembly can be screw mounted or directly sticked to the surface. |
Application Method | Place cables in applicator, then zip through cover sleeve. |
Colour | Black (BK) |
Fixation Method | Plug-in mounting |
Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
PART DESCRIPTION | HWCLIP25-PA66HIRHS-BK |

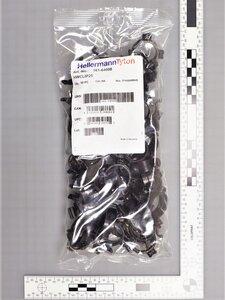

Pack Cont. | 50pcs. |
Package Content packed in | bag |
Product Family | HWClips |
Product Group | Accessories for Helawrap Cable Cover |
Short Description | Fixing clip PA66HIRHS nominal ∅ 25mm black |
Type | HWCLIP25 |
CE Certification | No |
CSA Certified | No |
ELV compliant (Article 4 - 2) | YES |
Flammability | UL 94 HB |
Halogen-free | Yes |
Hazardous Goods | No |
Melting Point | +284 °F (+140 °C) |
Operating Temperature | -40 °C to +105 °C |
ROHS compliant | Yes |
Specifications | |
UL Listed (US and Canada) | No |
UL Listed (US and Canada) | No |
UL Recognized (US and Canada) | No |
UL Recognized (US) | No |
UV-Stabilised | No |
|
|
Country of Origin | DE |
Customs Number | 39269097 |
GTIN-13 / EAN | 4031026268644 |
Packaging 1 - Height (m) | 0.035m |
Packaging 1 - Length (m) | 0.285m |
Packaging 1 - Qty | 50 |
Packaging 1 - Type | bag |
Packaging 1 - Volume (m³) | 0.0013m³ |
Packaging 1 - Weight (kg) | 0.155kg |
Packaging 1 - Width (m) | 0.13m |
Packaging 3 - Height (m) | 0.204m |
Packaging 3 - Length (m) | 0.591m |
Packaging 3 - Qty | 1500 |
Packaging 3 - Type | box |
Packaging 3 - Volume (m³) | 0.048m³ |
Packaging 3 - Weight (kg) | 5.8331kg |
Packaging 3 - Width (m) | 0.398m |
Packaging 4 - Height (m) | 1.235m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 30000 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 1.186m³ |
Packaging 4 - Weight (kg) | 137.8kg |
Packaging 4 - Width (m) | 0.8m |
