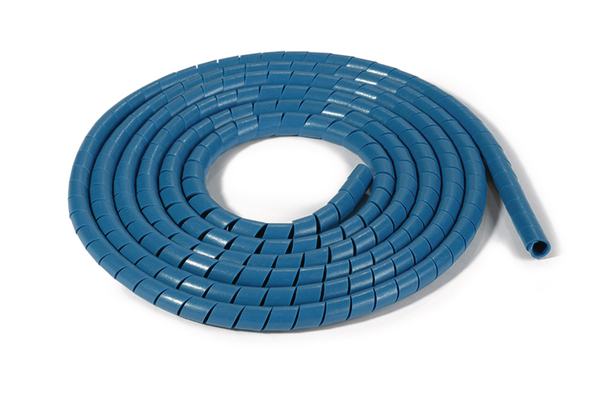

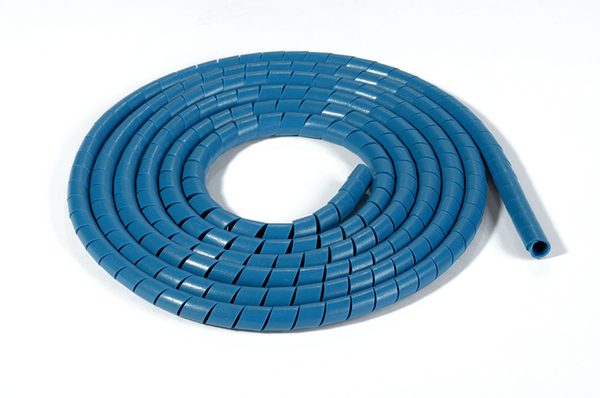

Metal-Content Spiral Binding PE/SS 30m blue ø 4mm
Číslo dílu 161-46100 | SBPEMC4-PE/SS-BU Podrobnosti na

  • High metal-content for reliable detection with standard detection equipment
  • Stainless steel preserves resistance to corrosion
  • Blue colour for enhanced visibility

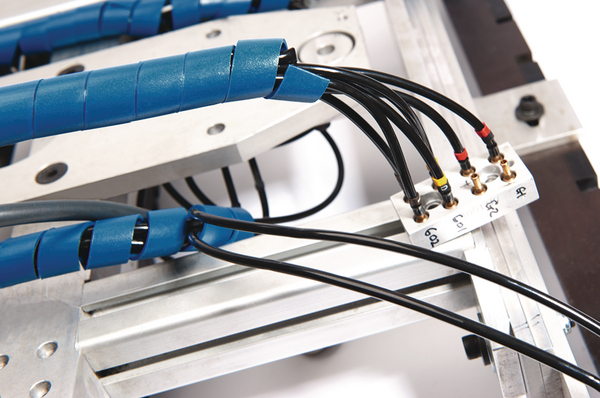

  • Ideal solution for bundling and protecting cables and hoses
  • Highly flexible
  • Suitable for retro-fitting
  • Branching off cable at any point
ukázat více

Vyžádejte si nyní individuální nabídku

Application SBPEMC is designed for applications in food-processing plants and machines.
Colour Blue (BU)
Key product features detectable
Material Polyethylene (PE), Stainless Steel (SS)
PART DESCRIPTION SBPEMC4-PE/SS-BU
Pack Cont. 30m
Package Content packed in carton
Product Family SBPEMC
Product Group PE Metal Detectable Spiral Binding
Short Description Metal-Content Spiral Binding PE/SS 30m blue ø 4mm
Type SBPEMC4
Variant Spiral Binding
Bundle Diameter max (metric) 20mm
Bundle ∅ 5-20mm
Bundle ∅ min. 5mm
Diameter (D) 4mm
Nominal ∅ 0.19"
Nominal ∅ 4mm
Pitch (P) 0.31"
Pitch (P) 7.8mm
Wall (WT) 0.039"
Wall (WT) 1.0mm
Weight/Unit 0.007kg
∅ D 0.16"
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Intermittent Operating Temperature +120°C
Operating Temperature -60 °C to +80 °C, intermittent +120 °C
ROHS compliant Yes
Specifications
UV-Stabilised No
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660685460
Packaging 3 - Height (m) 0.075m
Packaging 3 - Length (m) 0.275m
Packaging 3 - Qty 30
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0055
Packaging 3 - Weight (kg) 0.71kg
Packaging 3 - Width (m) 0.265m
Packaging 4 - Height (m) 1.096m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 5400
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.052
Packaging 4 - Weight (kg) 148.8kg
Packaging 4 - Width (m) 0.8m
Reel Length 98.4ft
Reel Length 30m
ETIM 7.0 Key EC002604
ETIM 8.0 Key EC002604
ETIM 9.0 Key EC002604
UNSPSC Key 39131604
