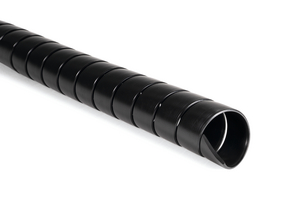

PP High Abrasion-resistant Wide Pitch Spiral Binding
Číslo dílu 162-31400 | SBPPHDF30-PP-BK Podrobnosti na

  • For organising and protecting cables and hoses
  • Heavy-walled and very robust
  • Excellent protection from mechanical stress
  • Very high abrasion resistance
  • Very good resistance to oils
  • Available in diameters up to 50 mm
  • Ideal for larger cable bundles
ukázat více

Vyžádejte si nyní individuální nabídku

Application SBPPHDF spiral binding is especially suitable wherever high abrasion resistance and much larger cable diameters are needed, for example in the petrochemical industry and in plant construction.
Colour Black (BK)
Material Polypropylene (PP)
PART DESCRIPTION SBPPHDF30-PP-BK
Pack Cont. 1m
Package Content packed in EA
Product Family SBPPHDF
Product Group PP High Abrasion-resistant Wide Pitch Spiral Binding
Type SBPPHDF30
Variant Spiral Binding
Bundle Diameter max (metric) 34mm
Bundle ∅ min. 30mm
Diameter (D) 30mm
Length (L) 1m
Nominal ∅ 30mm
Pitch (P) 20mm
Wall (WT) 2.0mm
Flammability UL 94 HB
Halogen-free Yes
Operating Temperature -30 °C to +100 °C
ROHS compliant Yes
Country of Origin GB
GTIN-13 / EAN 5022660175916
