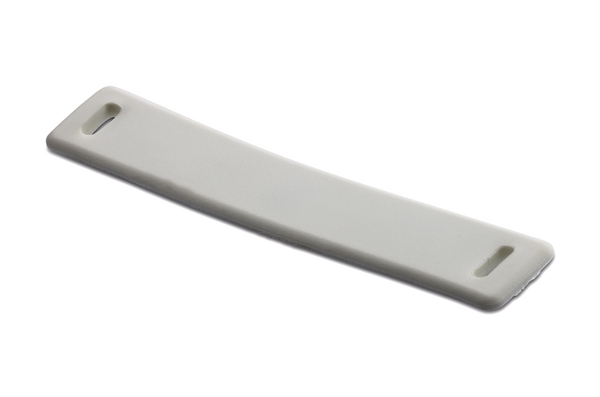

RFID transponder, 860-960 MHz (UHF), tie-on, 65.00x12.00mm, white, 1500pcs.
Číslo dílu 556-00805 | RFID FLEXTAG 65x12-TPU-WH | Podrobnosti na

Identification element with integrated RFID transponder according to international standards
Rewritable memory
Resilient and flexible
Mounting holes for attachment with cable ties
Clear identification of objects and / or locations through unique numbering systems
Faster, more secure and error-free data management
Robust and durable
Relatively large range
Bulk detection of up to 500 transponders per second is possible thanks to the UHF frequency (depending on the infrastructure)

Vyžádejte si nyní individuální nabídku

Vyžádat nabídku

Najděte distributora ve svém okolí

Více výrobků v této skupině výrobků:

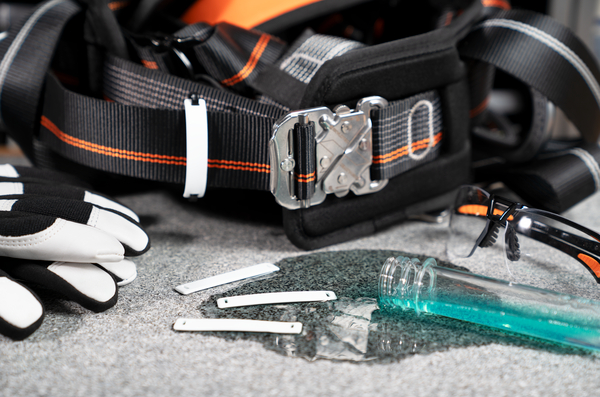

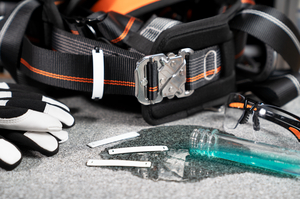

Application	The universally applicable identification elements of the RFID FlexLine series are ideally suited for the identification of objects and places inside and outside due to its robust and flexible design. Because of its flexibility, it adapts to its subsurface and can therefore also be attached to curved surfaces such as pipes, buckets or tree trunks. Identification elements of the RFID FlexLine are ideally suited for the clear identification of pallets or containers. The robust design even allows it to withstand washing processes, so that this identification elements are suitable for industrial cleaning (uniforms, work clothing, PPE, hotel or hospital linen, medical equipment, etc.). Another application would be the labelling of disposal bins such as garbage cans, garbage cans and garbage container.
Colour	White (WH)
Fixation Method	tie-on
Material	Thermoplastic Polyurethane (TPU)
PART DESCRIPTION	RFID FLEXTAG 65x12-TPU-WH
Pack Cont.	1500pcs.
Package Content packed in	pack
Product Family	FlexLine – Ultra high frequency (UHF), tie-on, blank
Product Group	Hard tags with RFID transponder
Short Description	RFID identification element 65x12 mm, 860-960 MHz (UHF), TPU, white
Type	RFID FLEXTAG 65x12


Frequency	860-960 MHz (UHF)

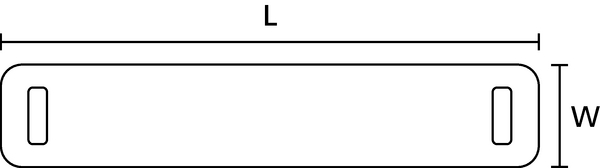

Length (L)	65.00mm
Memory	User memory: 512 bits, EPC: 96 bits, TID: 96 bits
Print Method	laser beam print
Strap Width max. (G)	6.50mm
Thickness (T)	2.00mm
Weight/Unit	0.0016kg
Width (W)	12.00mm
Width printable	54.00mm

CE Certification	Yes
Data Retention	10 years
ELV compliant (Article 4 - 2)	YES
Halogen-free	Yes
Hazardous Goods	No
IP-Rating	IP68
Operating Temperature	-40 °C to +85 °C
ROHS compliant	Yes
Radio protocol	ISO 18000-6C, EPC Gen2
Resistance to	Water: 100h (at room temperature), Salt mist: 100h (at room temperature), Petroleum: 100h (at room temperature), Mineral and vegetable oils: 100h (at room temperature)
Specifications
Specifications	IEC 62262: IK06, IEC 68-2-29, IEC 68-2-6
Tamper proof	No
Type of RFID chip	Alien Higgs 3
Write endurance	100000 cycles
