RFID label, 860-960 MHz (UHF), white, 55.00x14.00mm, 800pcs.
Číslo dílu 556-00842
| TAG55x14T1UHFM-1601-WH
|
Podrobnosti na
- The adhesive label with integrated RFID transponder is ideal for the clear identification and digitized management of mobile and stationary equipment, raw materials and semi-finished or finished products.
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Application | This adhesive label with integrated RFID transponder is ideal for clear identification and digital management of mobile and fixed equipment, raw materials and semi-finished or finished products. Thanks to the so-called UID (Unique Identifier, Unique Identification Number) and its integrated and freely usable data memory, objects can be easily inventorised and tracked within the framework of asset management (resource management) or the manufacturing execution system (production control system) (tracking , traceability) as well as monitored and managed. With the help of an IT infrastructure, specific information can be assigned to each individual object or location, which can be called up as required and thus serve to optimise processes. This has an immediate positive effect on process costs. |
| Application Method | The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance. |
| Colour | White (WH) |
| Description | Ultra High Frequency (UHF) |
| Fixation Method | adhesive |
| Key product features | detectable |
| Material | Type 1601, Polyester (1601) |
| PART DESCRIPTION | TAG55x14T1UHFM-1601-WH |
| Pack Cont. | 800pcs. |
| Package Content packed in | reel |
| Product Family | RFID labels type 1601 and 1602– Ultra high frequency (UHF) |
| Product Group | Adhesive labels with integrated RFID transponder, thermal transfer |
| Removable | No |
| Self adhesive (Yes/No) | Yes |

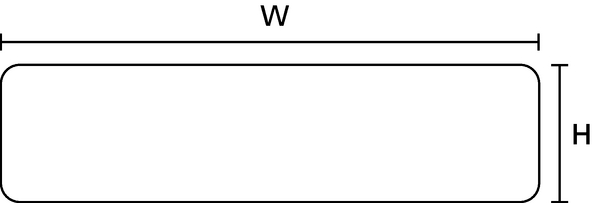

| Short Description | RFID adhesive label 55x14 mm UHF white |
| Type | TAG55x14T1UHFM |
Stáhnout
| Curing Temperature | from +15 °C |
| Data Retention | 50 years |
| ELV compliant (Article 4 - 2) | YES |
| Hazardous Goods | No |
| IP-Rating | Other |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Recommended Ribbon Type | TT822OUT |
| Shelf Life | 12 months |
| Specifications |
|
| Tamper proof | No |
| Type of RFID chip | Impinj Monza R4i |
| Country of Origin | DE |
| Customs Number | 85235910 |
| GTIN-13 / EAN | 4031026659862 |
| Labels per Row | 1 |
| Packaging 1 - Height (m) | 0.019m |
| Packaging 1 - Length (m) | 0.2m |
| Packaging 1 - Qty | 800 |
| Packaging 1 - Type | reel |
| Packaging 1 - Volume (m³) | 0.00076m³ |
| Packaging 1 - Weight (kg) | 0.24kg |
| Packaging 1 - Width (m) | 0.2m |
| Storage Temperature | +20 °C |
| Storage conditions | 50% relative humidity. |
