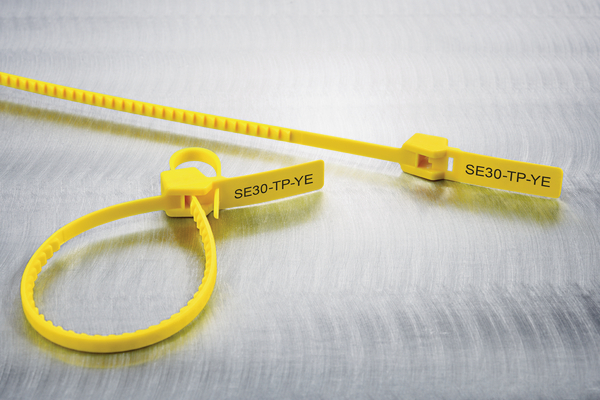

Custom printed pull tight plastic seals
Číslo dílu 142-10346 | SE30-PA66-BU Podrobnosti na

  • SD30 features a gripping spike to stop slippage on cloth or textile bags
  • SE30 is commonly used for sealing doors and closures
  • Thermal transfer offset printed for highest clarity print definition
  • Available as sequential alphanumeric text but graphics and barcodes are available on request
  • Tail excess can be tidied away into the ties’ head
  • Print jobs and graphics can be transmitted electronically
ukázat více

Vyžádejte si nyní individuální nabídku

Application HellermannTyton provides a range of Pull Tight Seals that allow an audit trail to be created and easily alert the user if a package or shipment has been tampered with. The SE series are ideal for use in roll cages, duty free trolleys, and other equipment where an audited seal is required. A secondary loop catchment is designed to hold the tie's tail in place.
Colour Blue (BU)
Material Polyamide 6.6 (PA66)
PART DESCRIPTION SE30-PA66-BU
Pack Cont. 100pcs.
Package Content packed in pcs.
Product Family S-Series
Product Group Custom printed pull tight plastic seals
Type SE30

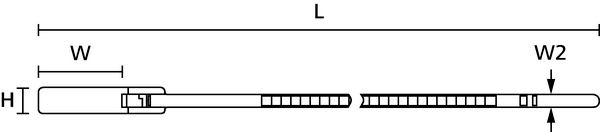

Bundle Diameter max (metric) 41mm
Bundle ∅ 10-41mm
Bundle ∅ min. 10mm
Height (H) 8.0mm
Length (L) 138mm
Min.Tensile Strength 135N
Print Method hotfoil print
Weight/Unit 0.002kg
Width (W) 8.0mm
Width (W2) 3.8mm
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
Country of Origin GB
Customs Number 39235090
GTIN-13 / EAN 5022660316944
Packaging 1 - Height (m) 0.025m
Packaging 1 - Length (m) 0.356m
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00135
Packaging 1 - Weight (kg) 0.2kg
Packaging 1 - Width (m) 0.152m
Packaging 3 - Height (m) 0.172m
Packaging 3 - Length (m) 0.575m
Packaging 3 - Qty 4000
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0375
Packaging 3 - Weight (kg) 8.25kg
Packaging 3 - Width (m) 0.379m
Packaging 4 - Height (m) 1.176m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 96000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.129
Packaging 4 - Weight (kg) 219.0kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
